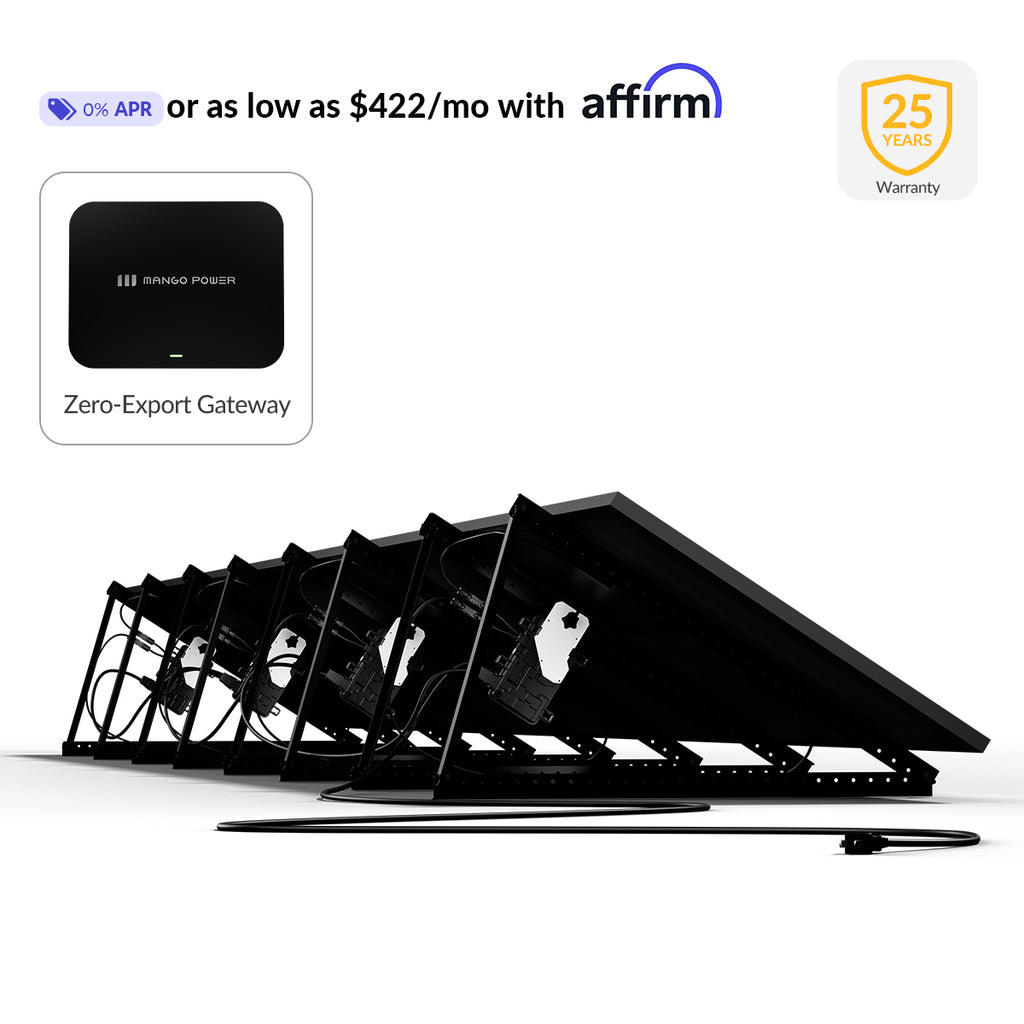

Mango Power S Plug & Play Solar 1200W Kit + Zero-Export Gateway
Product Reviews

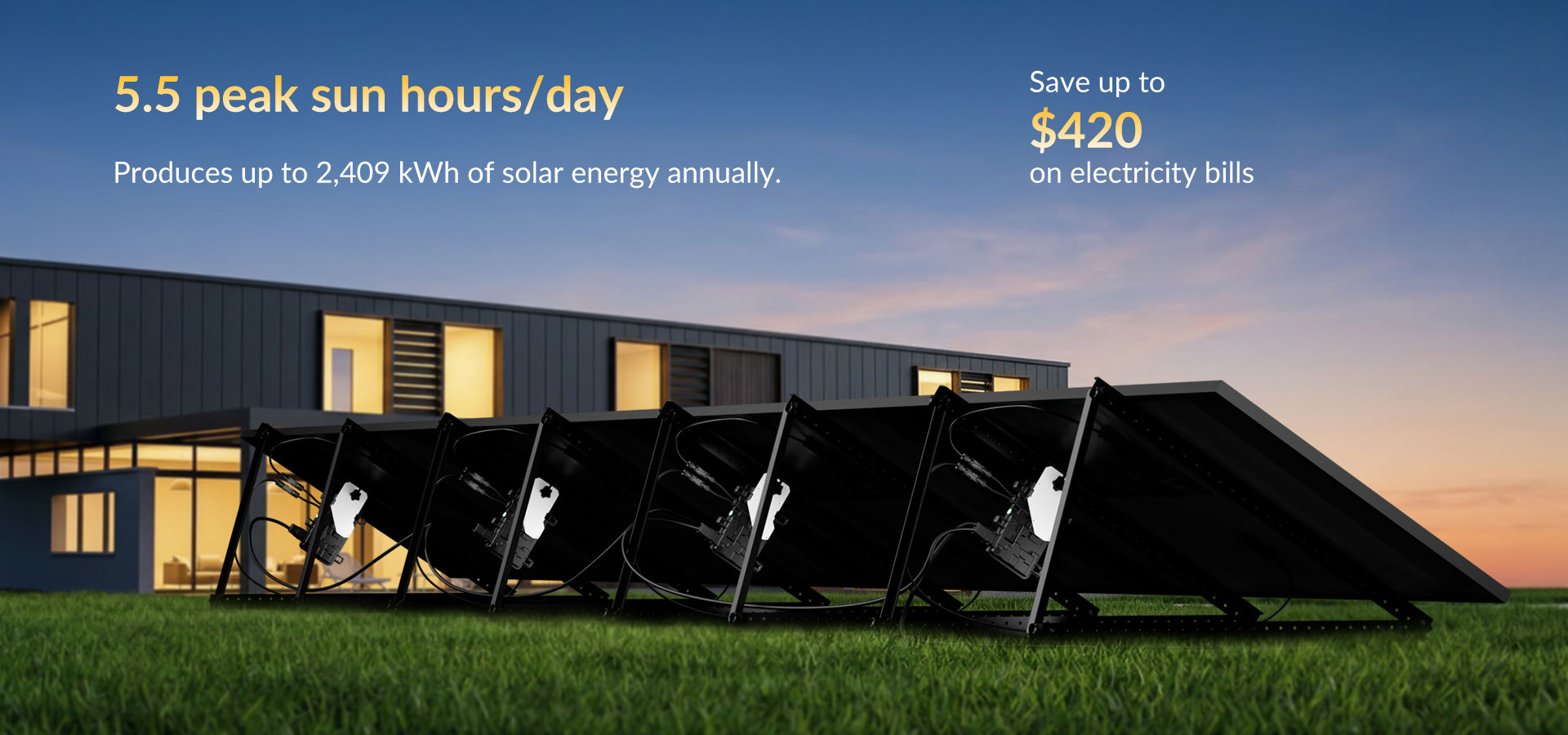

High-Yield Economic Engine: Save $420 Annually, $10,000+ Lifetime.
It pays for itself. Offset high utility rates and generate long-term savings. Over its lifespan, it’s not just an appliance—it’s a $10,000 profit engine.

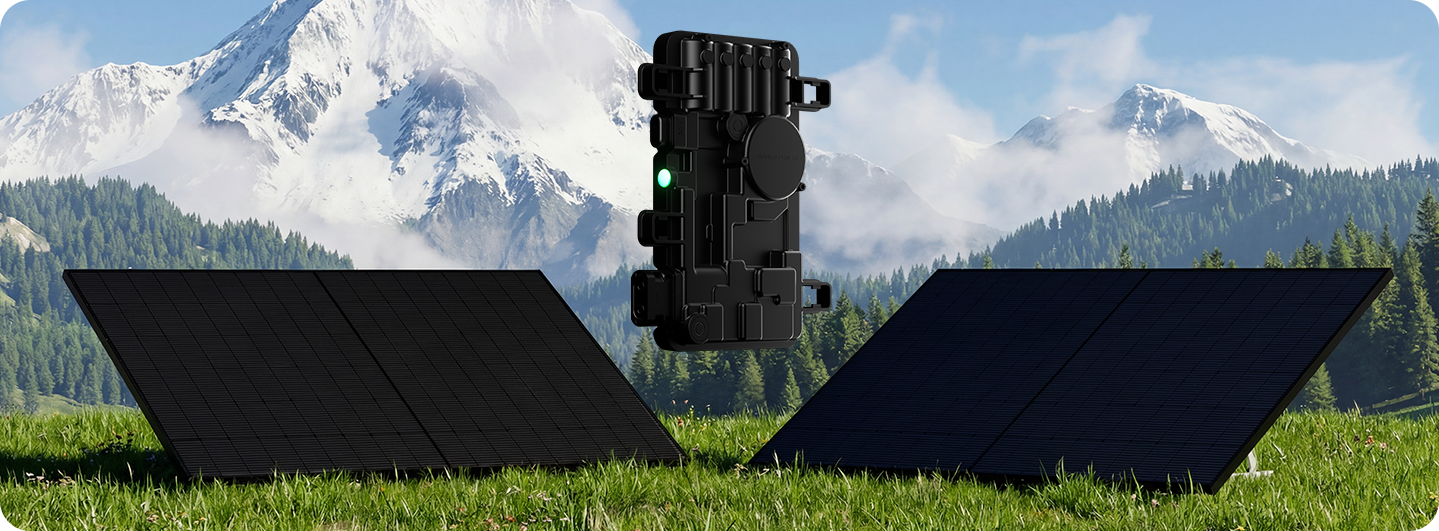

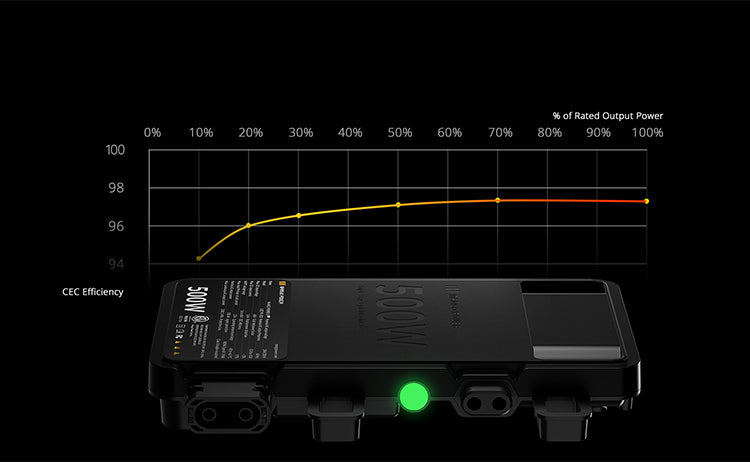

Full-Spectrum 97% CEC Efficiency: Maximize Solar Harvesting from Sunrise to Sunset.
Efficient at every hour. While others wait for high noon, our Single-Stage cyclo topology starts earlier and runs later. More uptime means more power for your home.

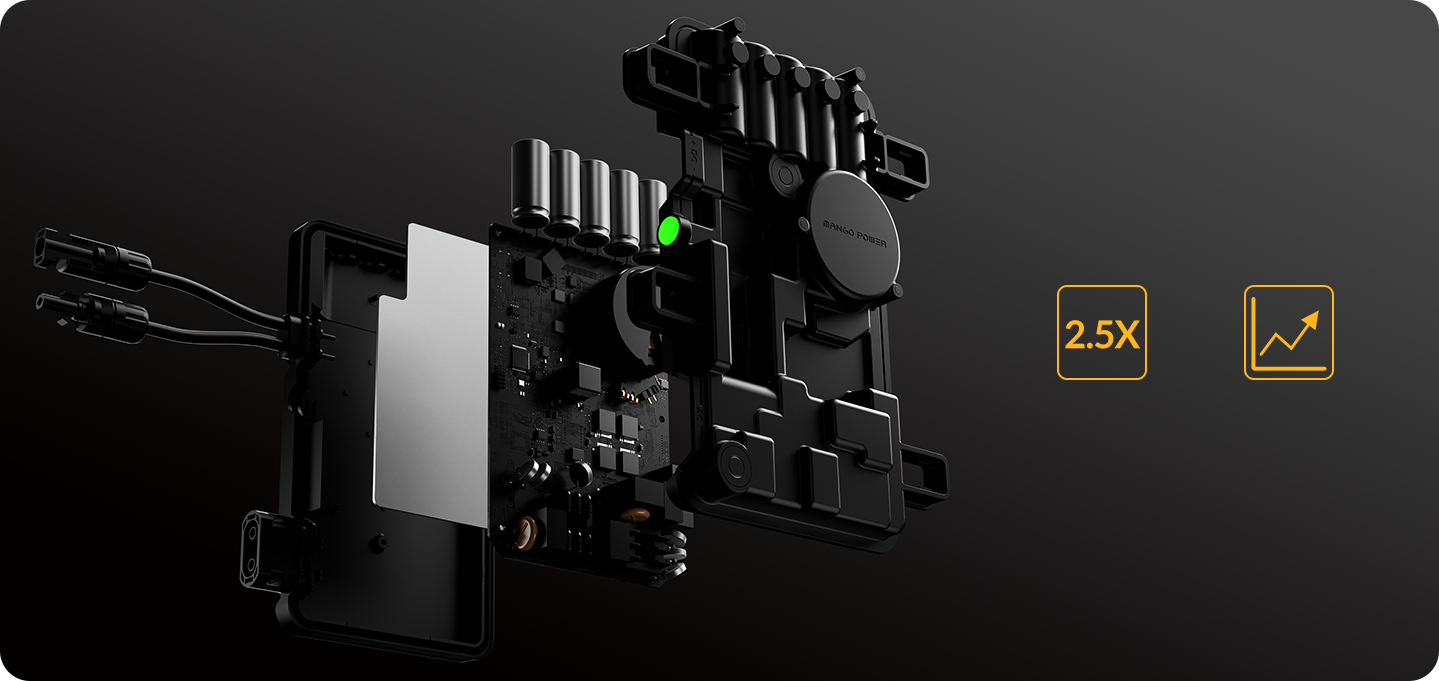

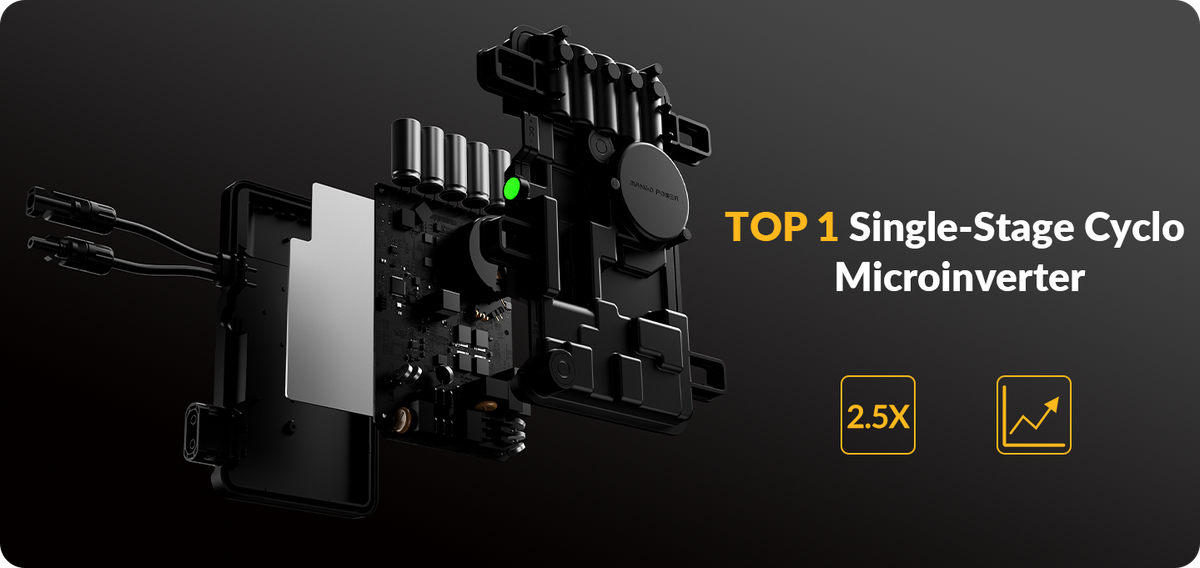

Single-Stage Cyclo Topology: 30% Component Reduction for 2.5x Reliability.
Simpler is stronger. We removed the redundant conversion stages. Fewer parts mean 2.5x higher reliability and a streamlined path for your energy.

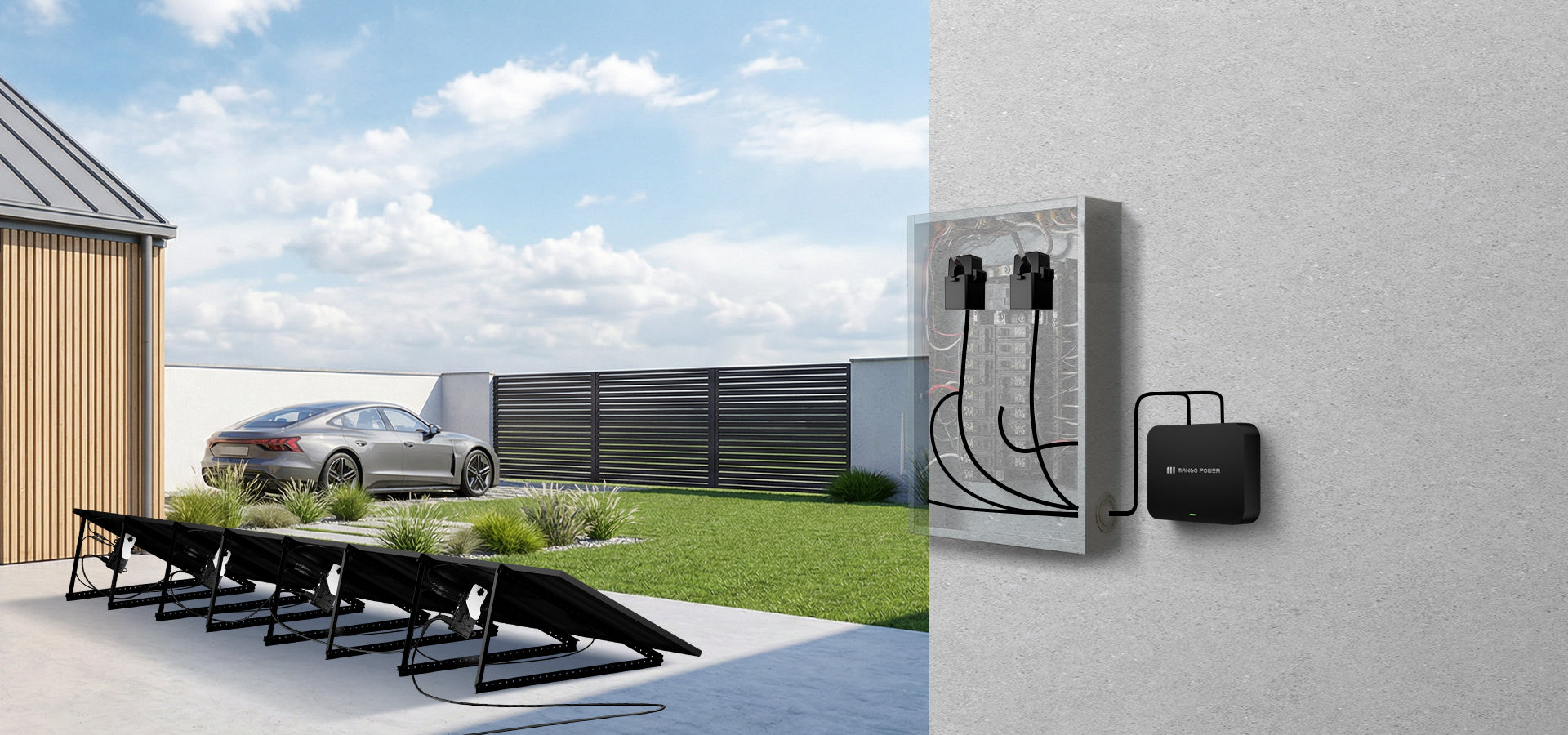

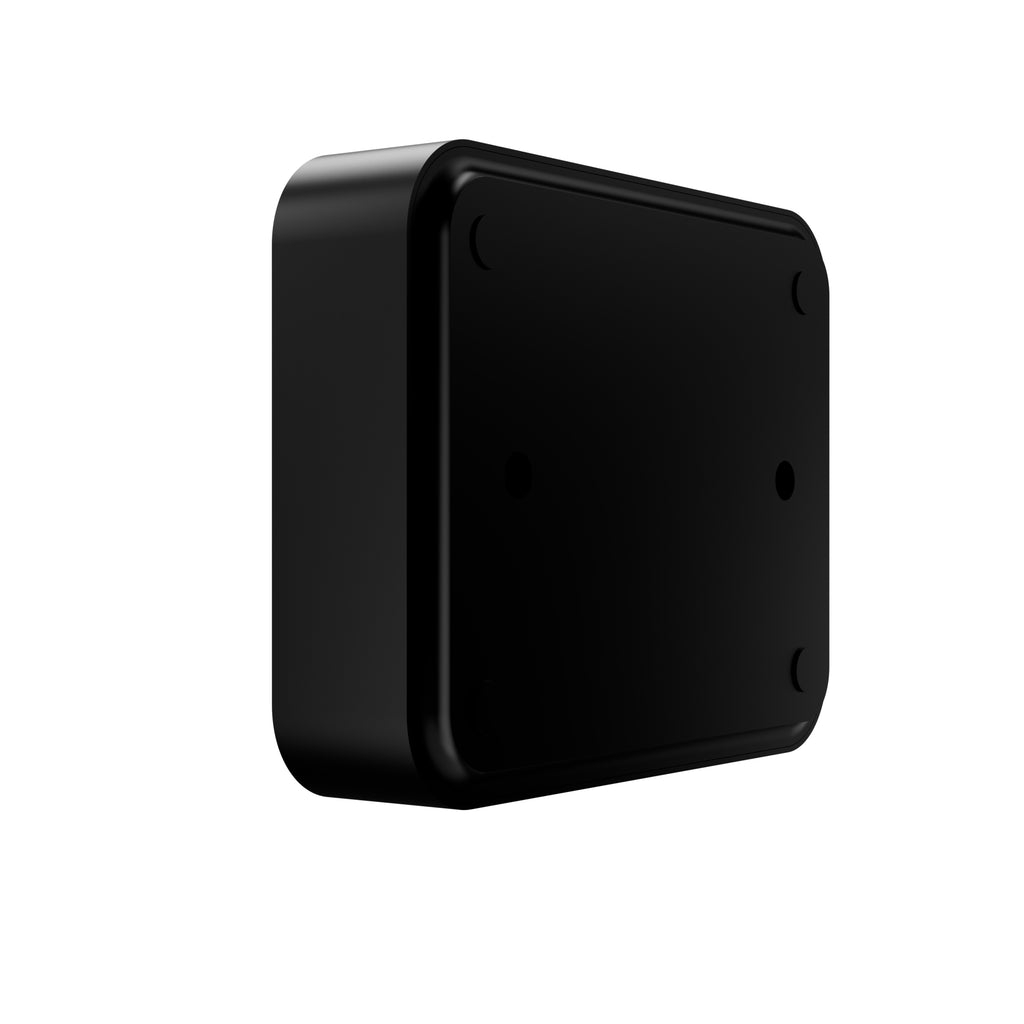

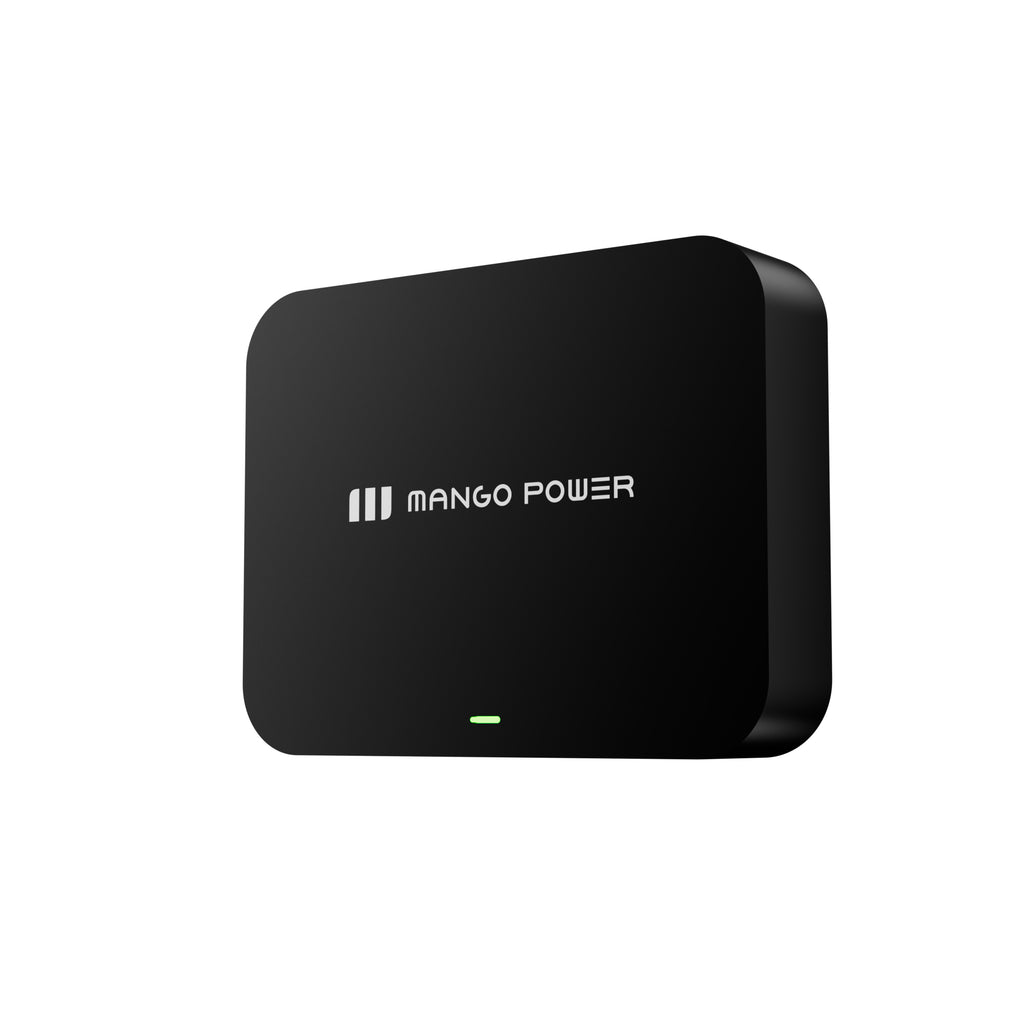

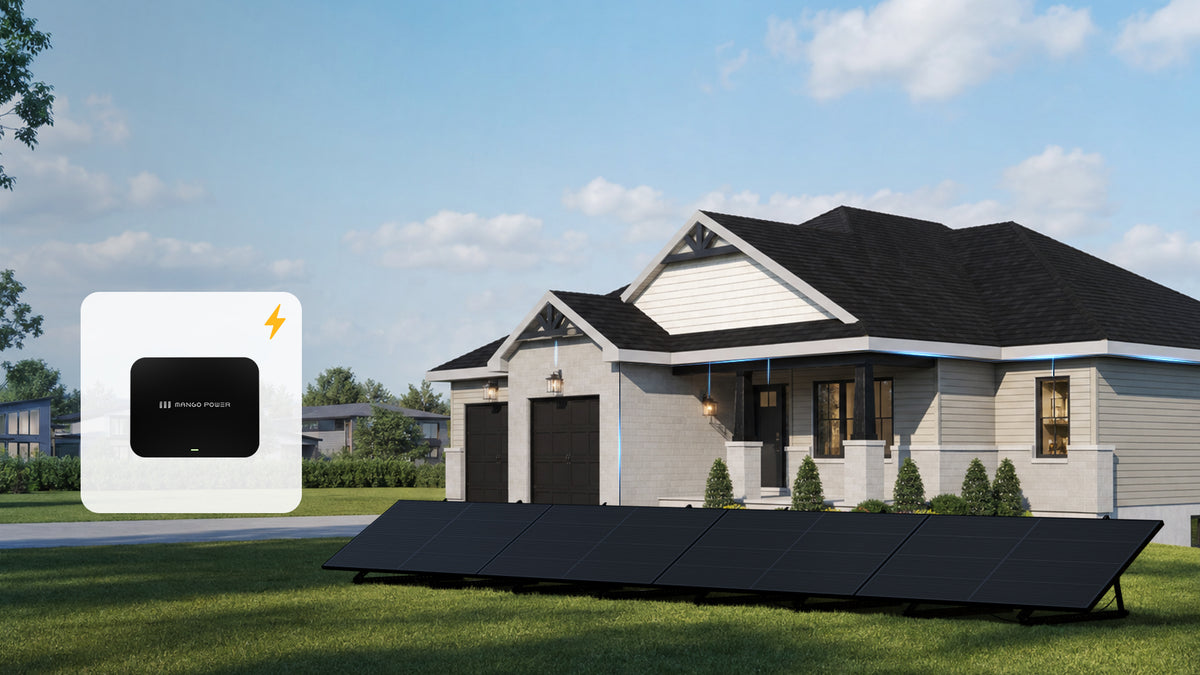

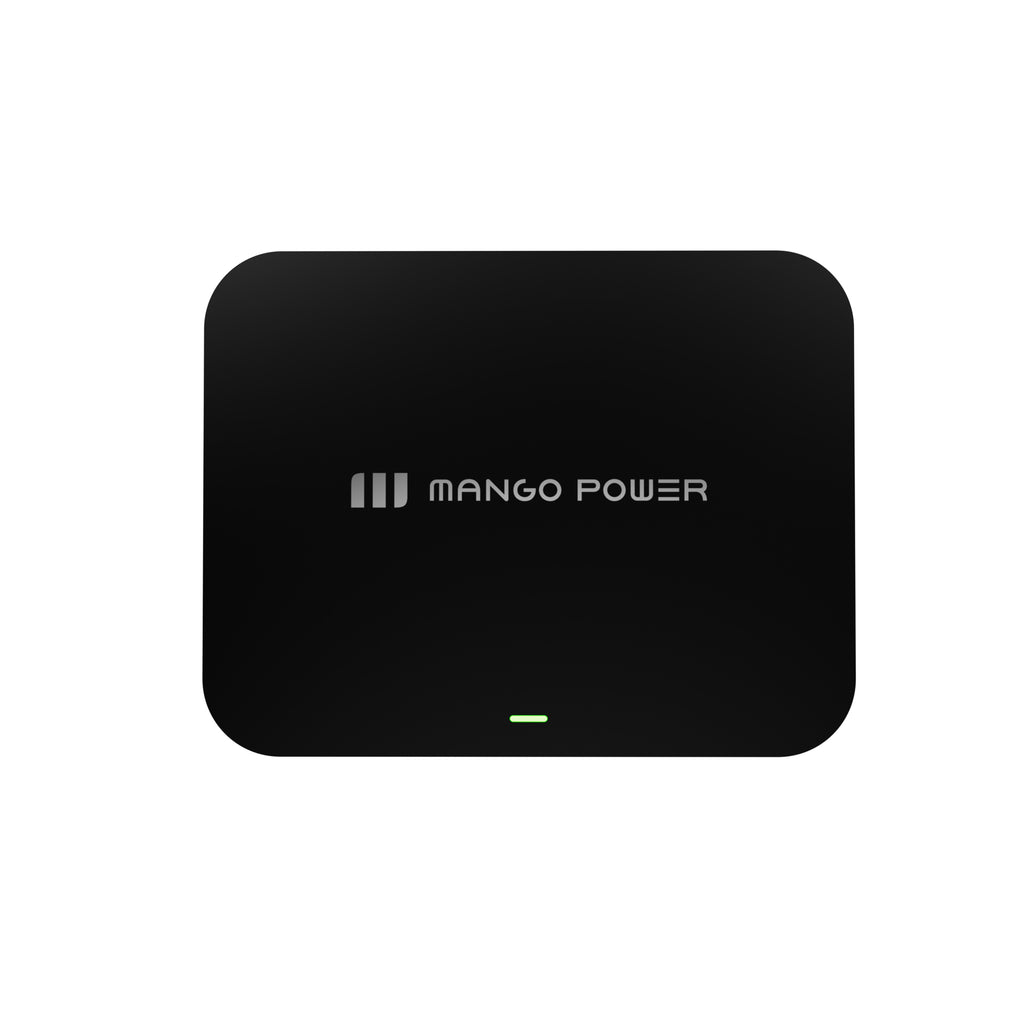

Smart Gateway Lite: 200A Precision Whole-Home Metering.
Total home intelligence. Monitor every watt with ±0.5% accuracy. The Smart Gateway Lite turns your house into a truly intelligent microgrid.

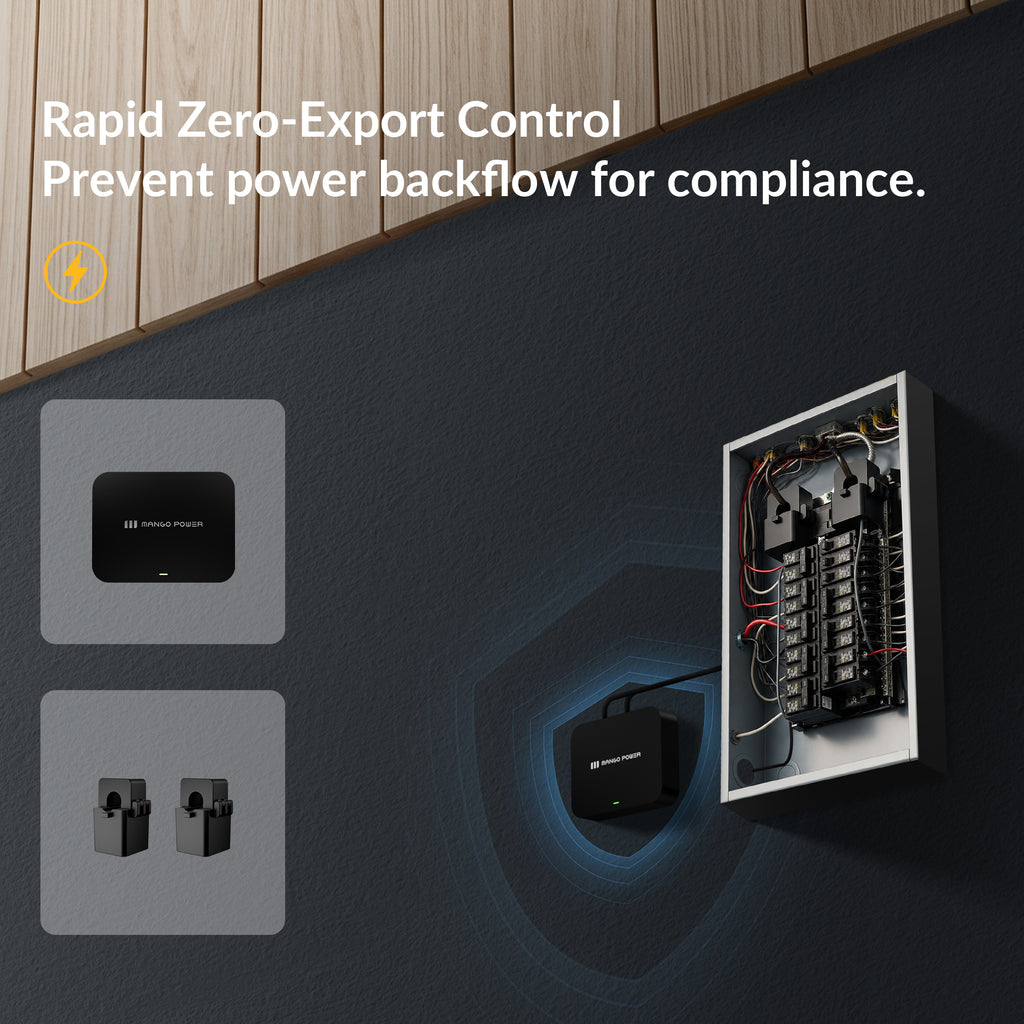

Smart Gateway Lite: Anti-backflow
Prevent energy backflow and optimize whole-home energy management.
Monitor every watt with ±0.5% accuracy. The Smart Gateway Lite turns your house into a truly intelligent microgrid.

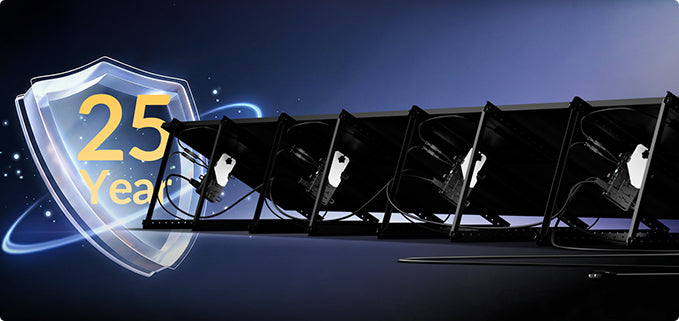

25-Year Operational Integrity: 219,000-Hour Design Life Guarantee.
Built to last decades. We don't measure life in years, but in decades. Matching the lifespan of your panels with an industry-leading 25-year warranty.
MANGO POWER S Series Certified
Meets CA Rule 21(UL 1741-SA), IEEE 1547:2018(UL 1741-SB) and CSA C22.2

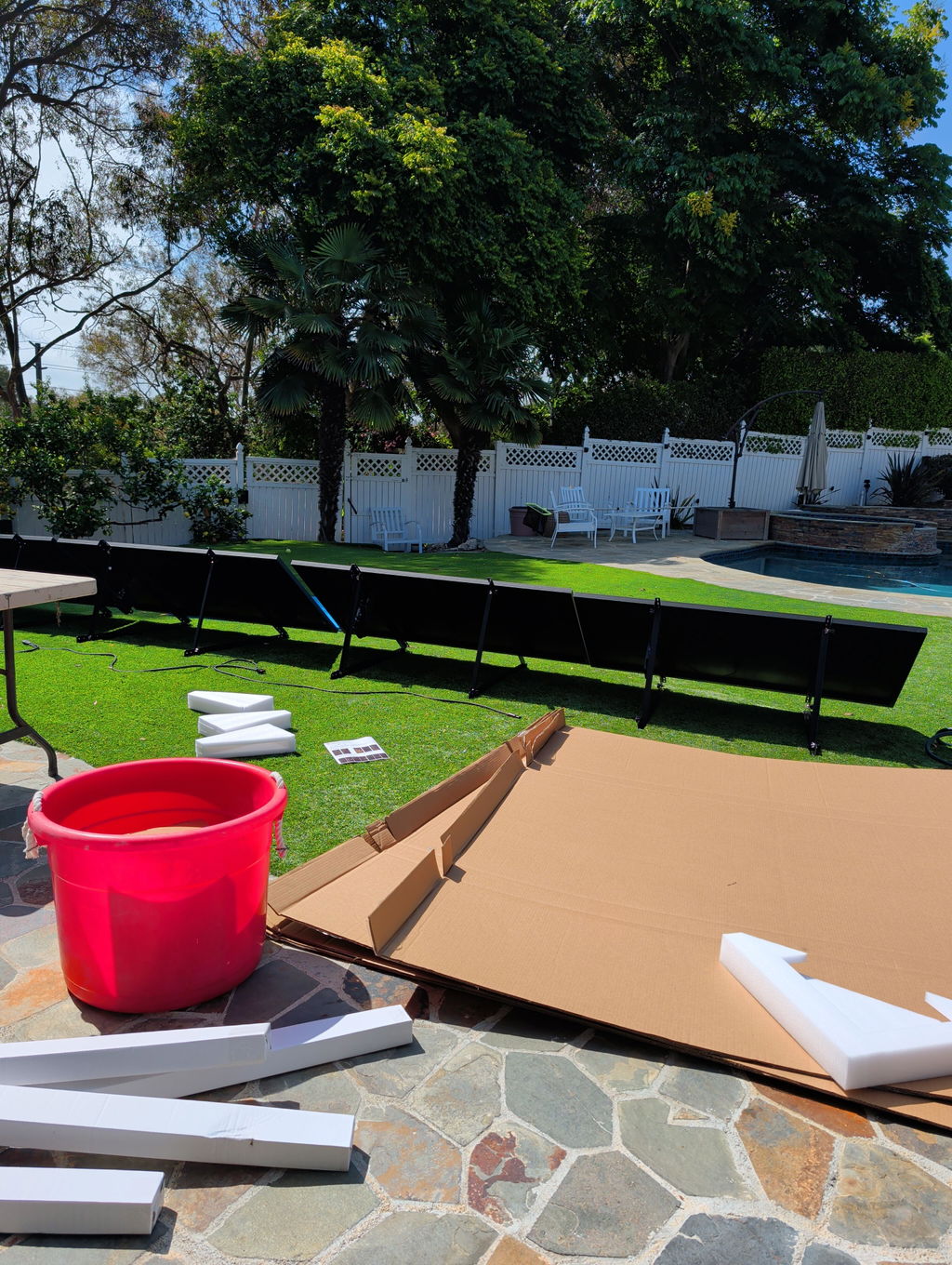

Real Feedback. Real Power.
Touch-Safe Polymer Architecture
Power in 5 minutes. No electricians, no complex wiring.

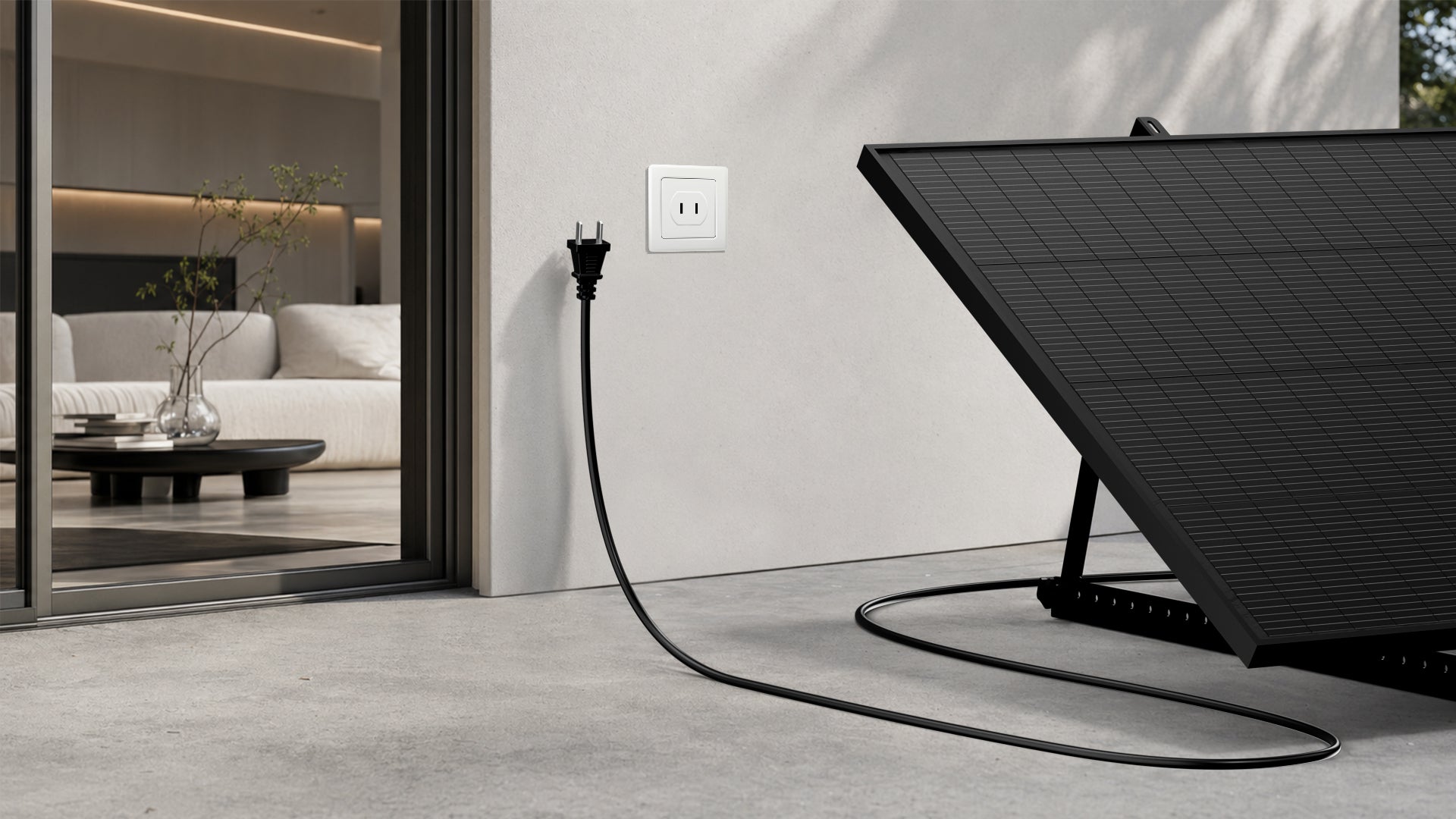

Plug-and-Play Integration

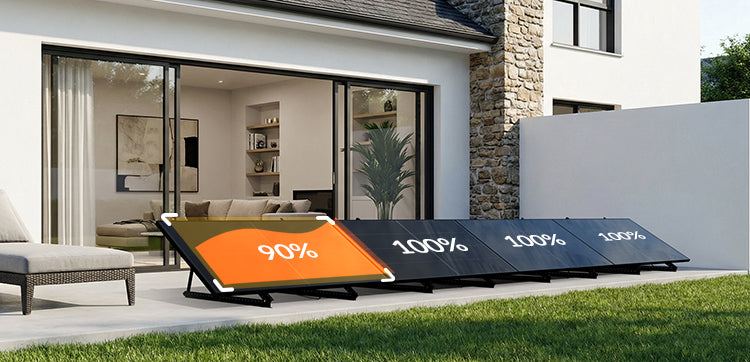

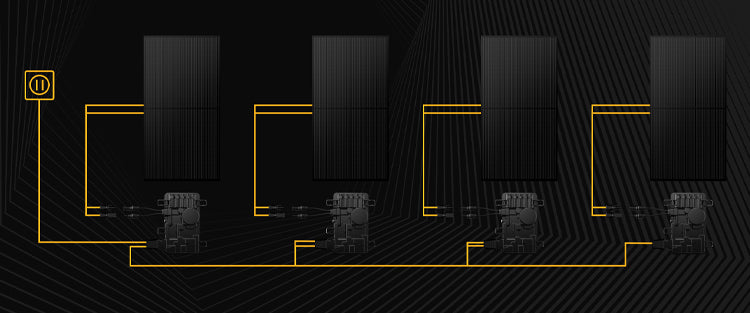

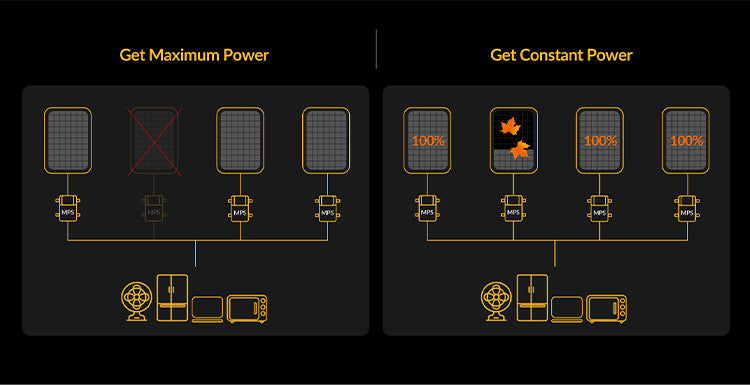

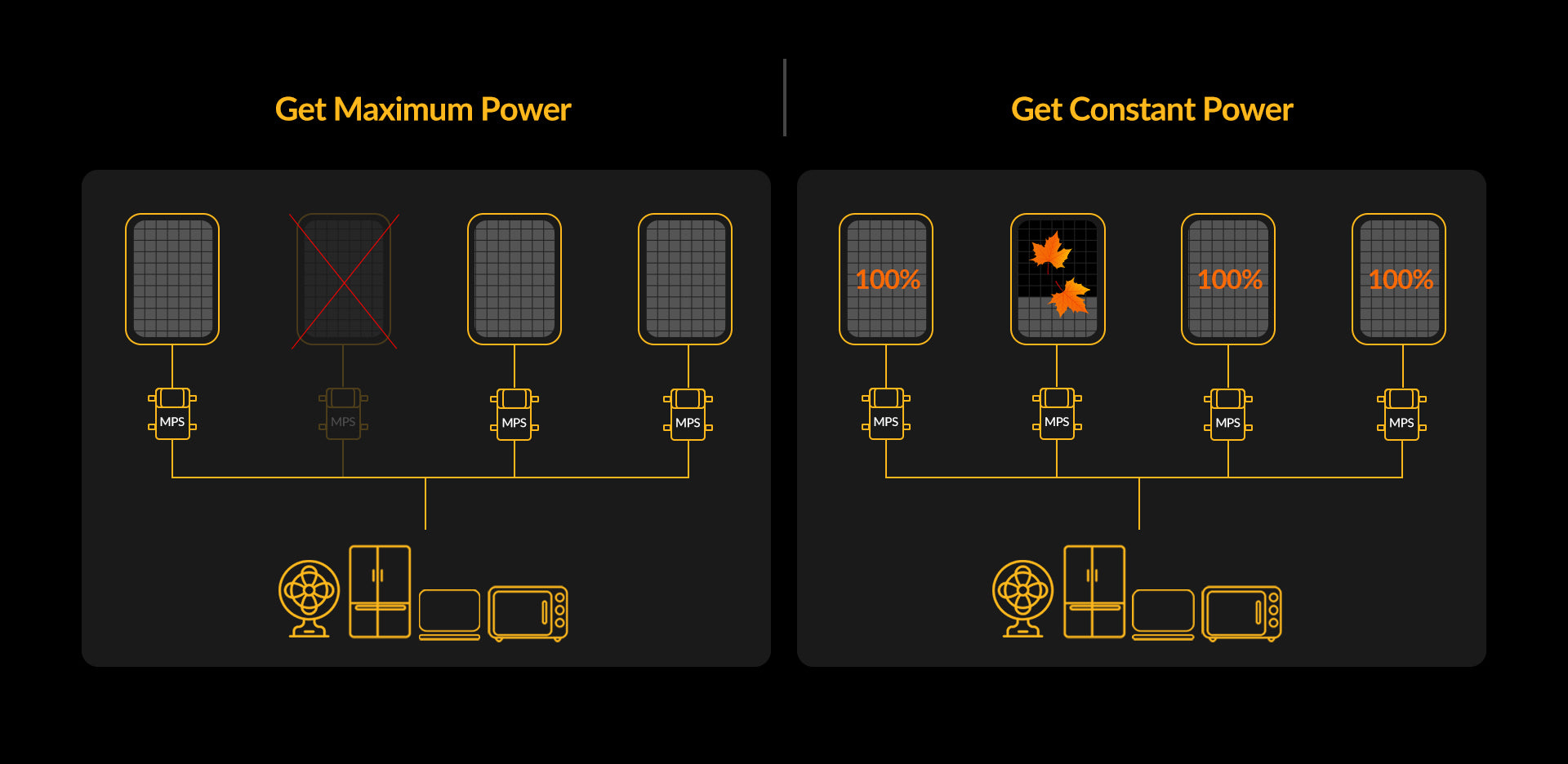

99.9% High MPPT in Partial Shade.

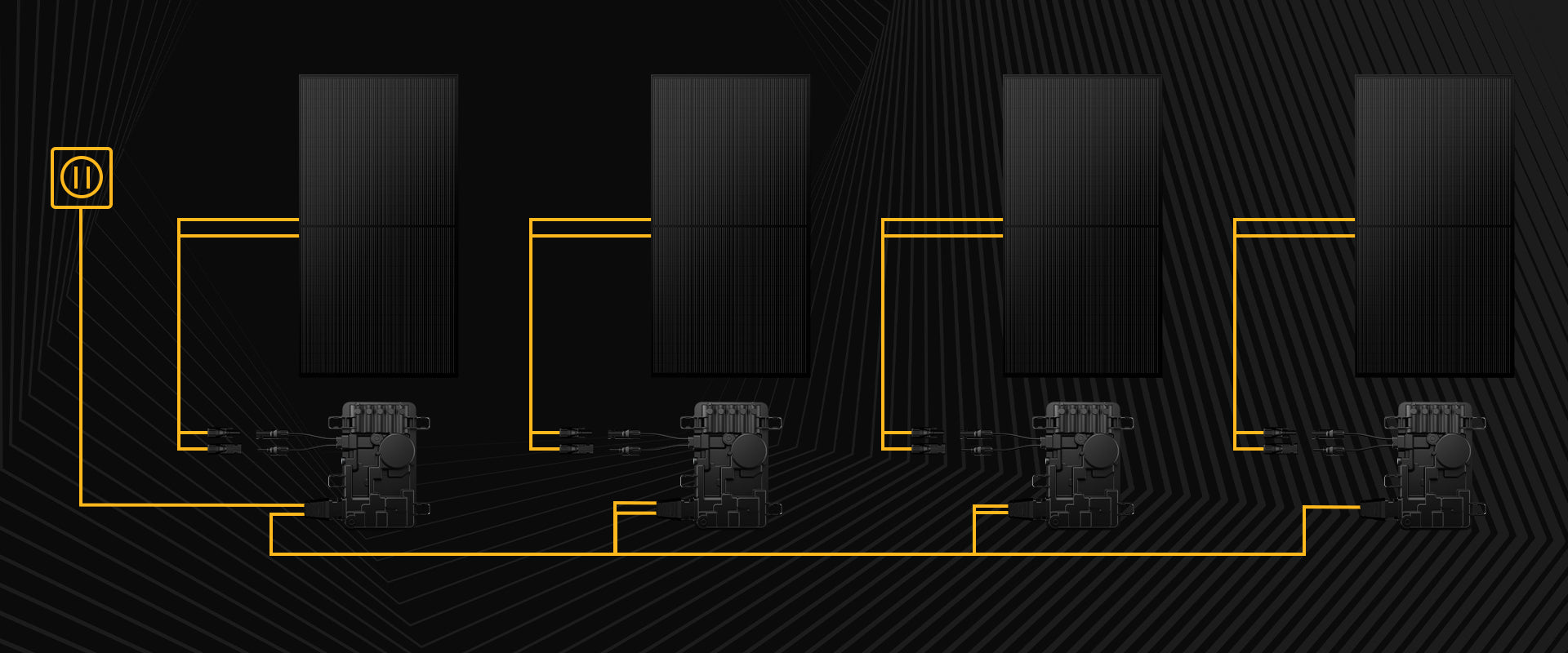

Smart at the module level. One shadow won't stop the system. Independent tracking ensures every panel delivers its maximum potential, no matter the conditions.
N-Type TOPCon Cell Architecture
24.8% Conversion
Advanced N-Type cells deliver up to 24.8% efficiency, capturing more sunlight to outperform traditional panels by up to 25%.

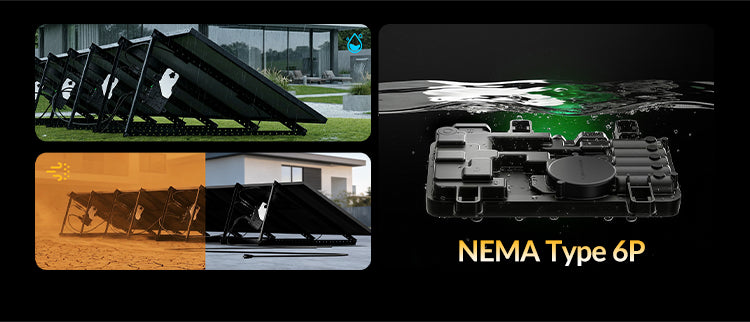

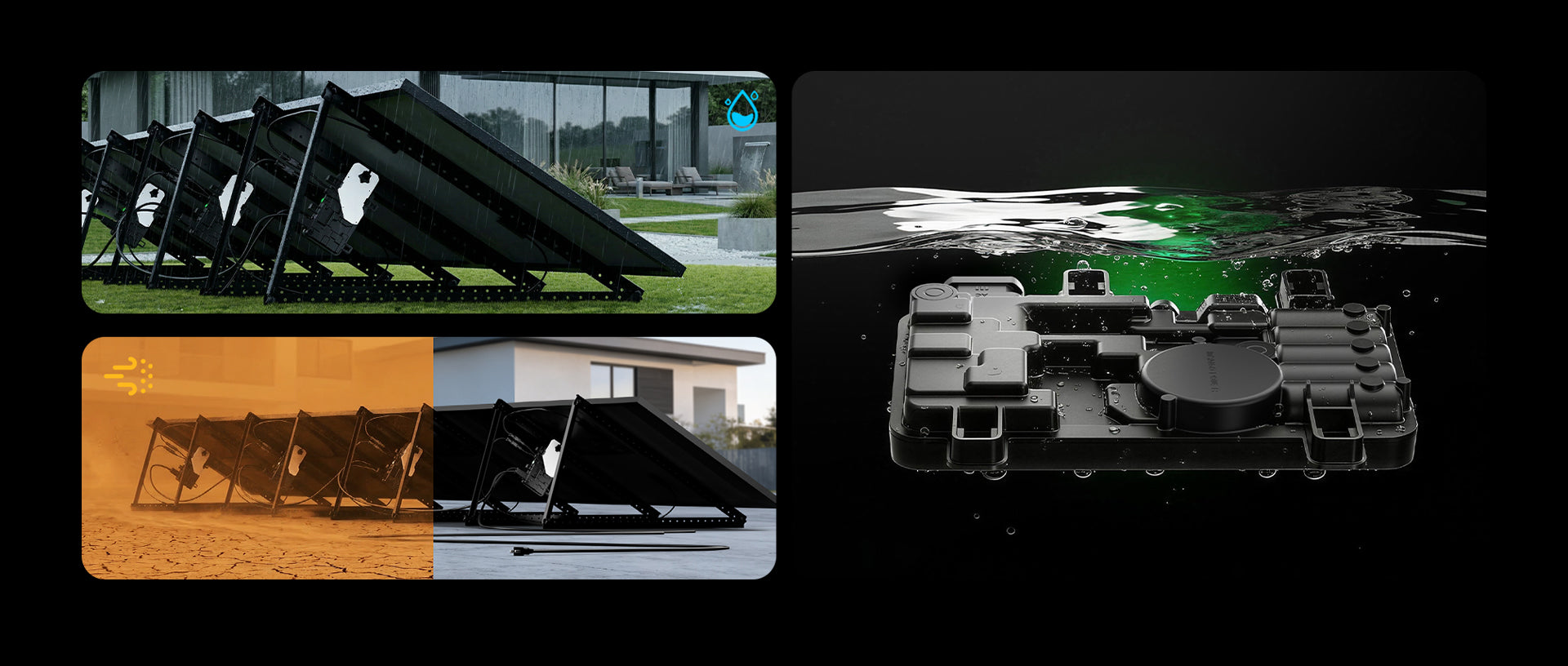

NEMA Type 6P Rating: Hermetically Sealed for Extreme Weather.
Ready for anything. From -40°F to 149°F, our hermetically sealed enclosure is dustproof, waterproof, and fanless. Quiet power, rain or shine.

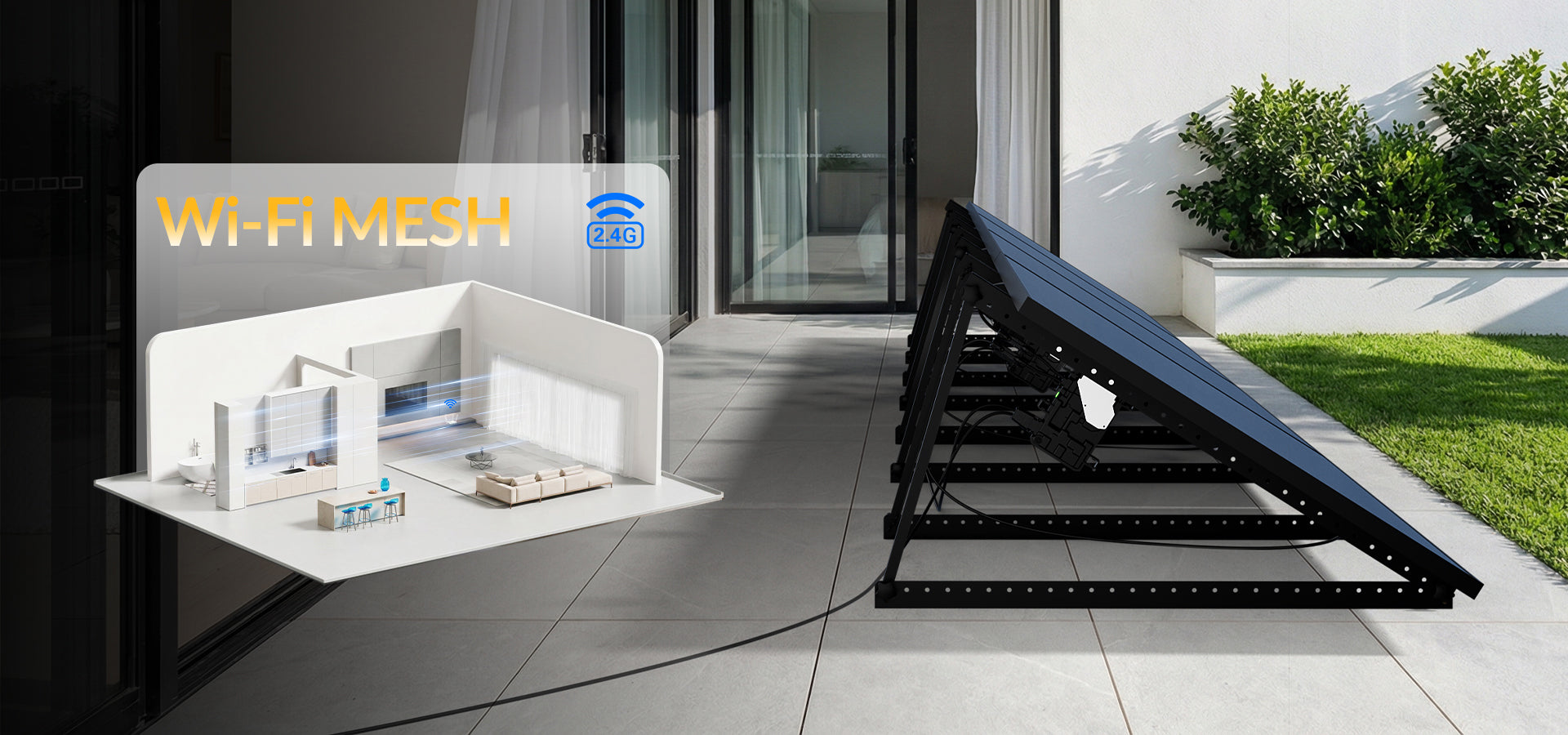

One-Click Wi-Fi MESH: Self-Healing 2.4GHz Smart Network Topology.
Always connected. Self-healing MESH technology ensures your devices stay synced automatically, providing 99.9% uptime for your energy data.

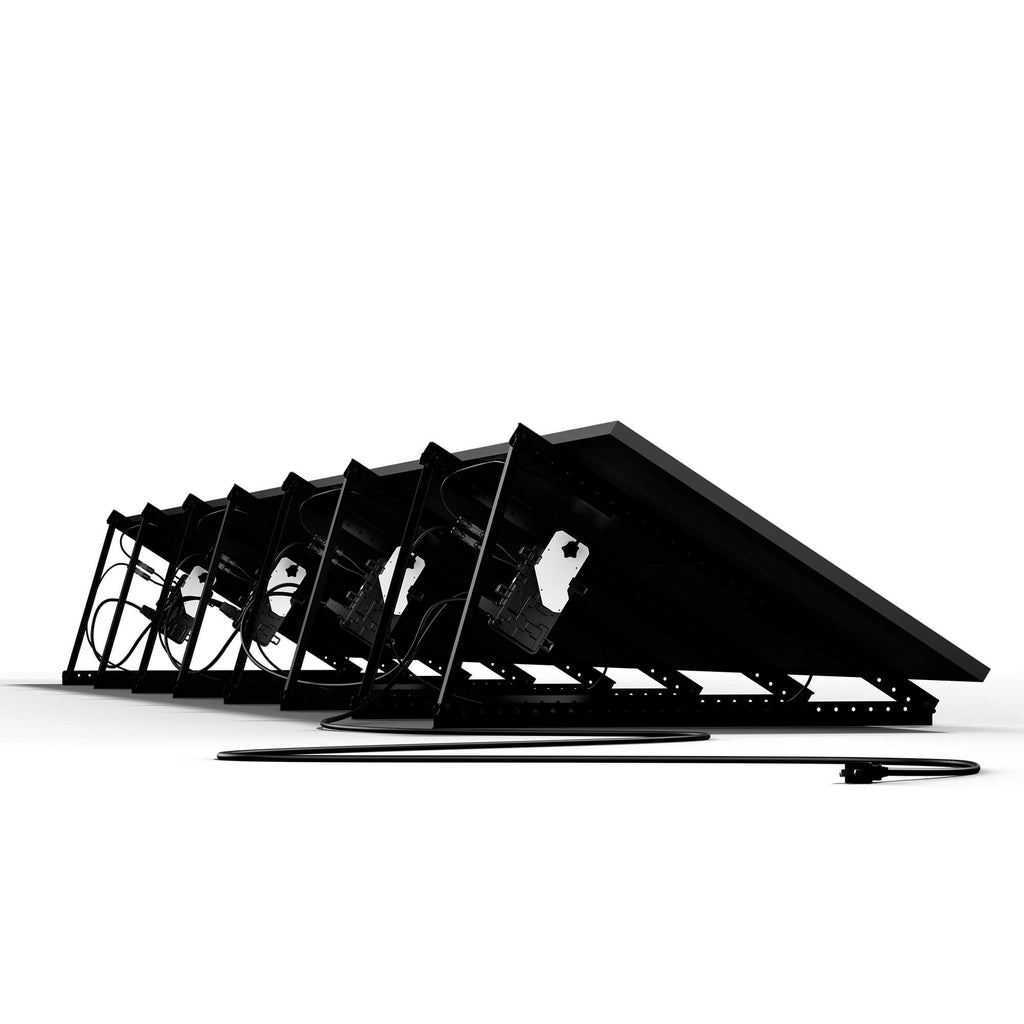

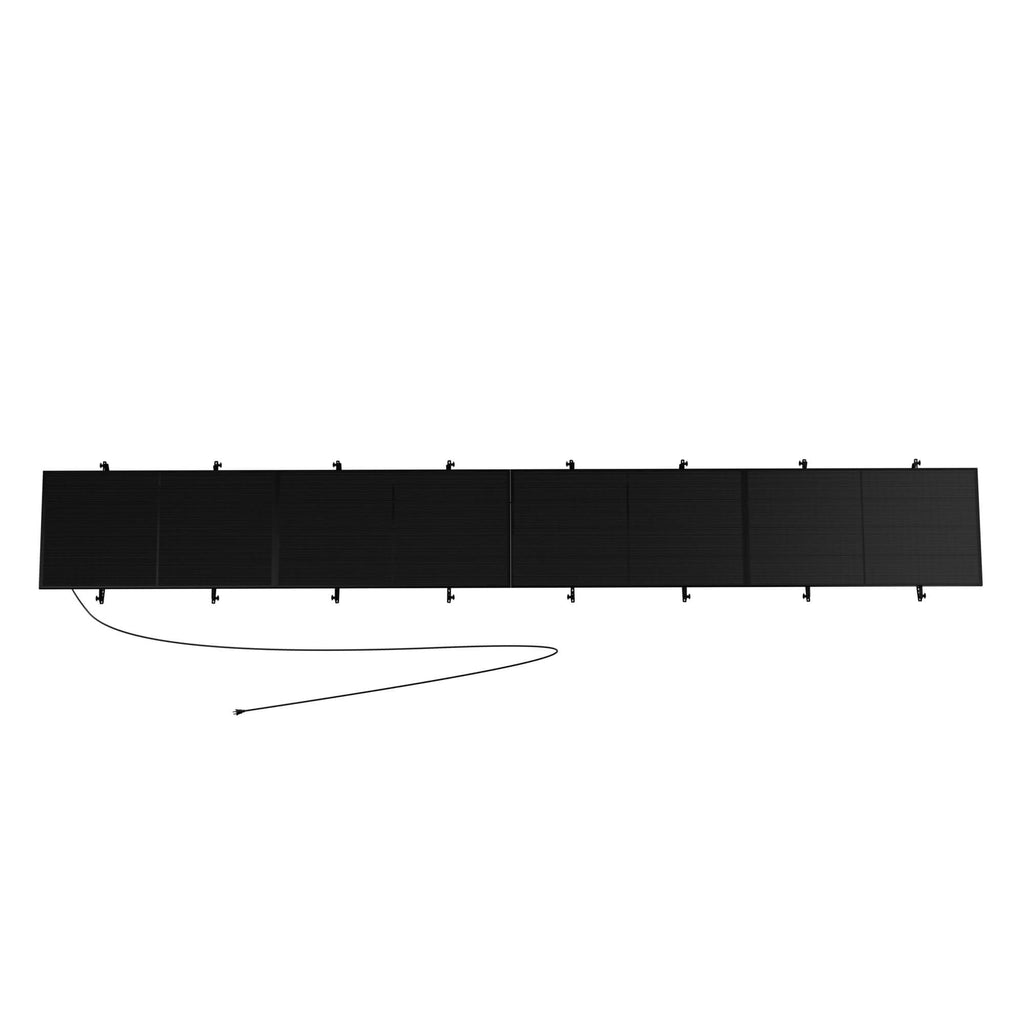

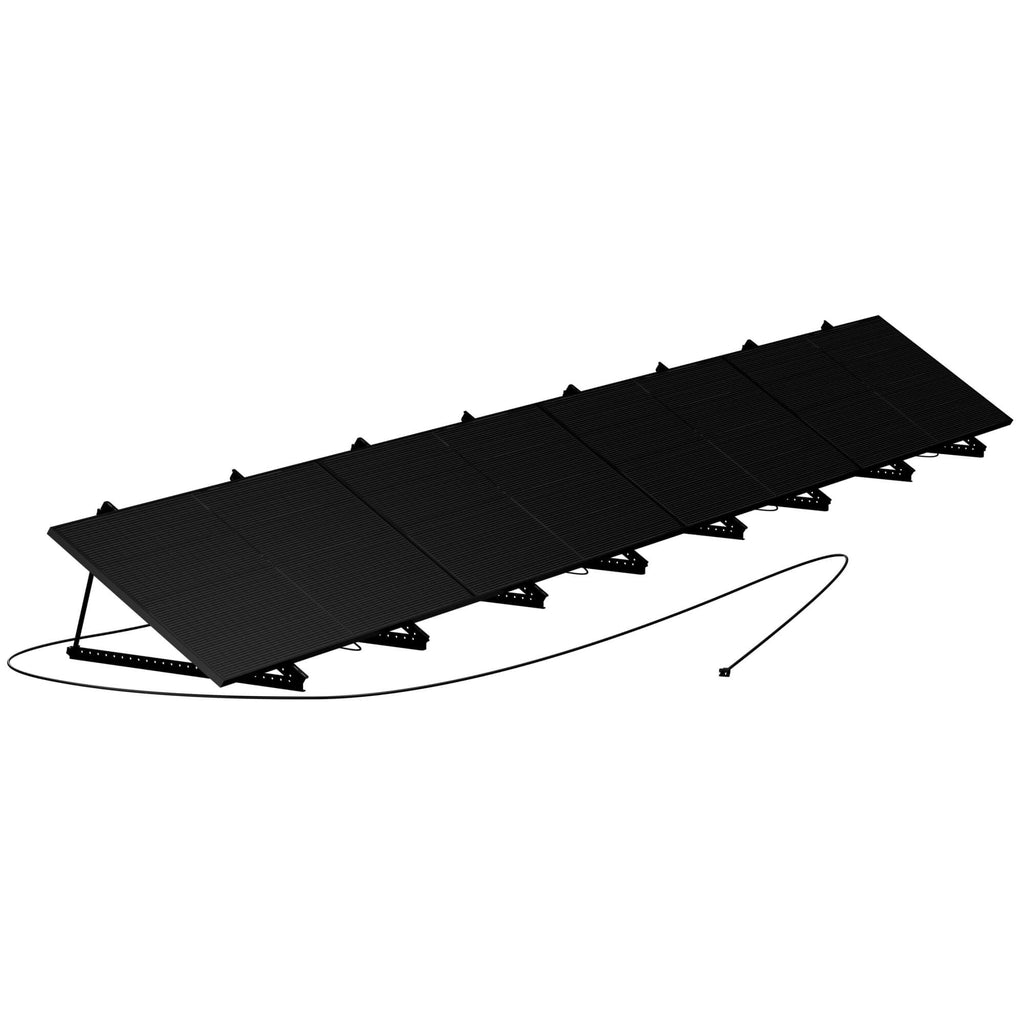

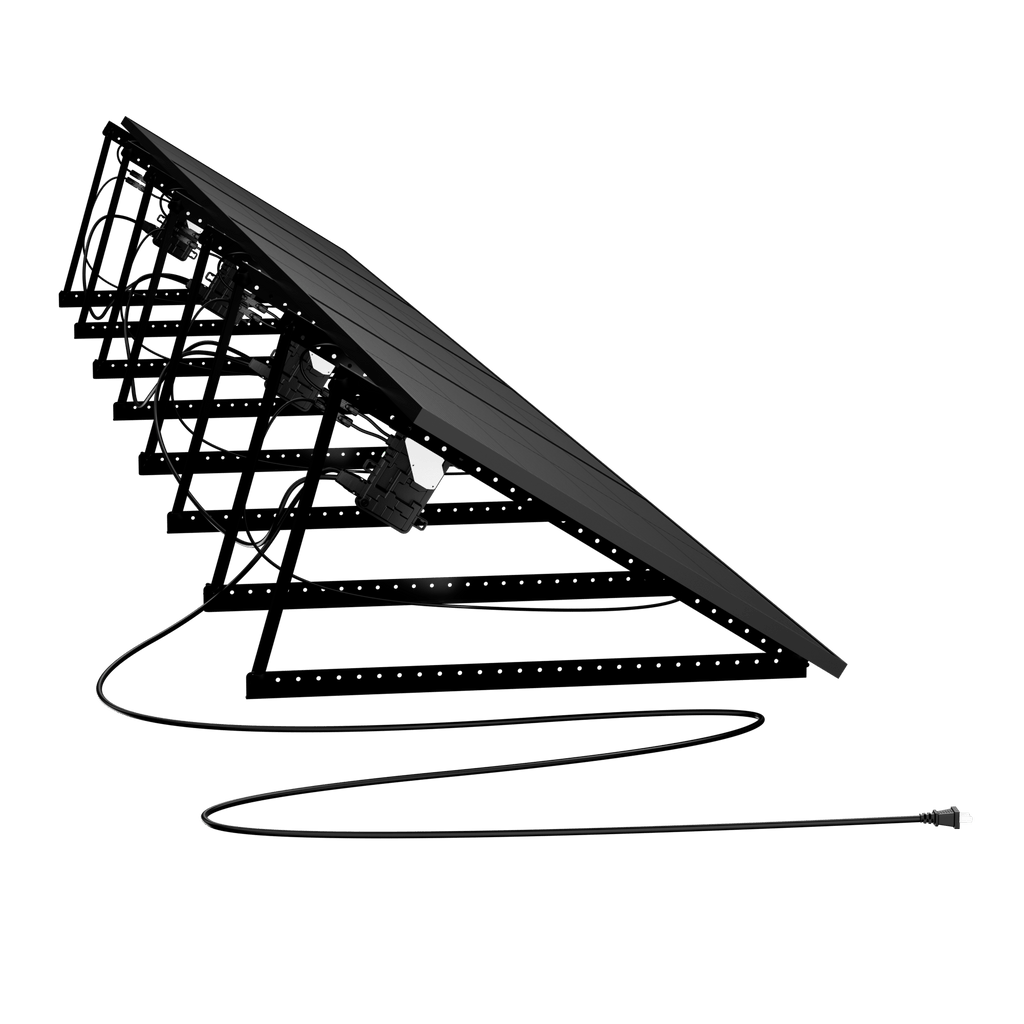

No extra shopping needed with our all-inclusive balcony solar package. Everything you need—panels, brackets, and inverter in one simple box.
Double-insulated polymer casing simplifies installation with no extra grounding required.
Setup your entire system in 5 minutes with no electrician.
5 Min Setup
Setup your entire system
One Simple Box
ALL in One
Simple & Safe
Double-insulated polymer casing

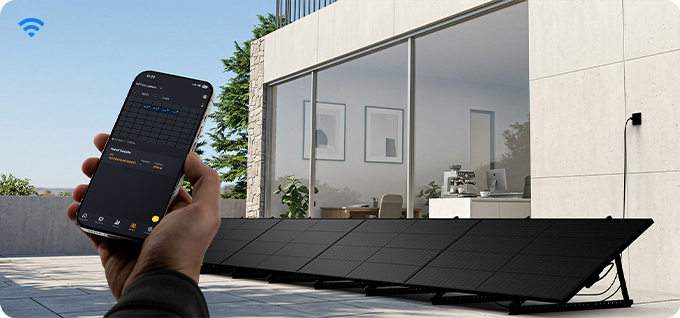

Smart AI App Ecosystem: Real-Time Granular Energy Analytics.
Your energy at a glance. Track your production and savings in real-time. Beautifully simple data to help you master your home’s energy habits.
100μs Rapid Shutdown (RSD): Ultra-Fast Safety Response Exceeding NEC Standards.
Net-Zero Contribution: 15-Ton CO2 Offset over Product Lifecycle.
Clean energy, clear conscience. Offset 15 tons of CO2 over 25 years. It’s the equivalent of planting 800 trees—right from your balcony.

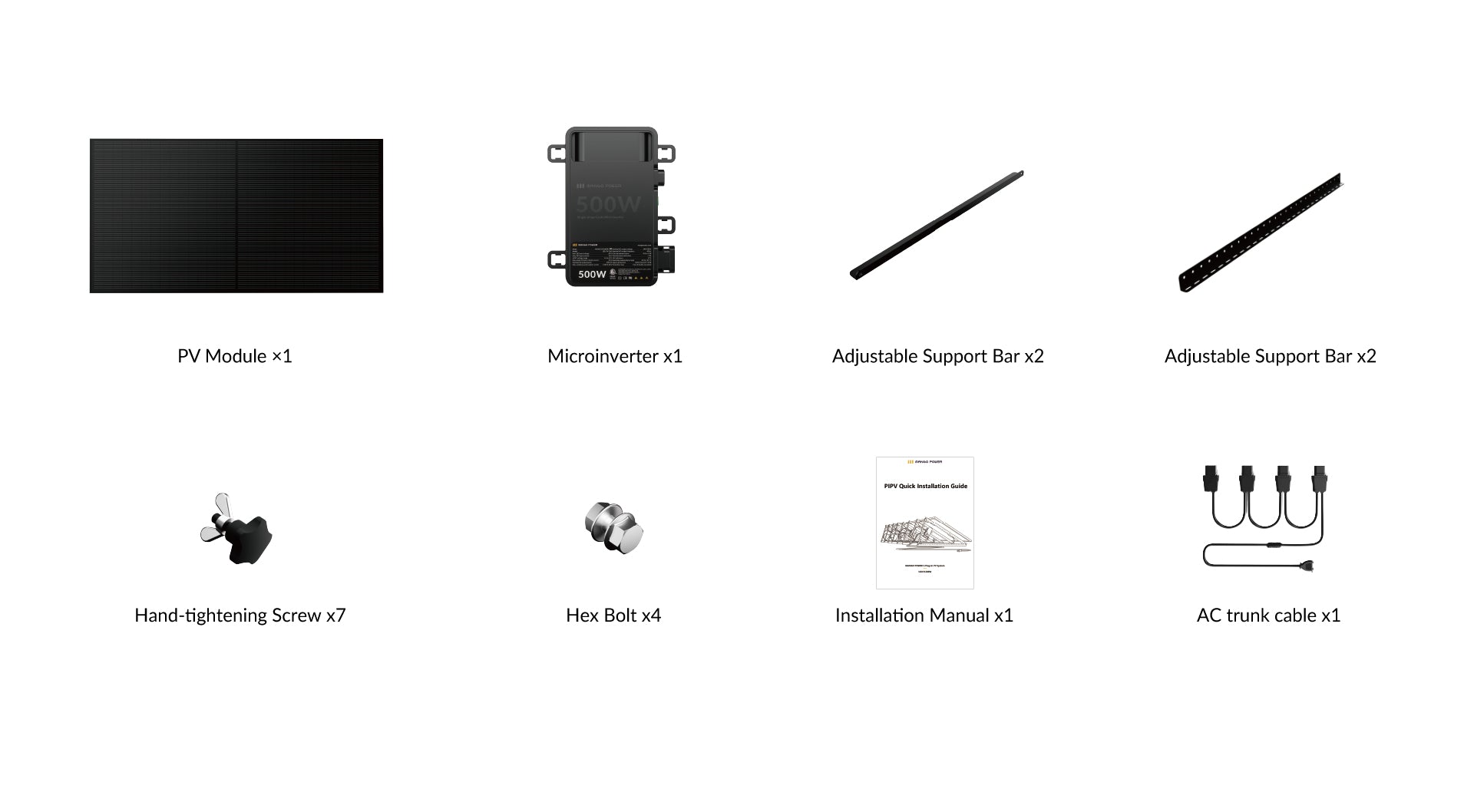

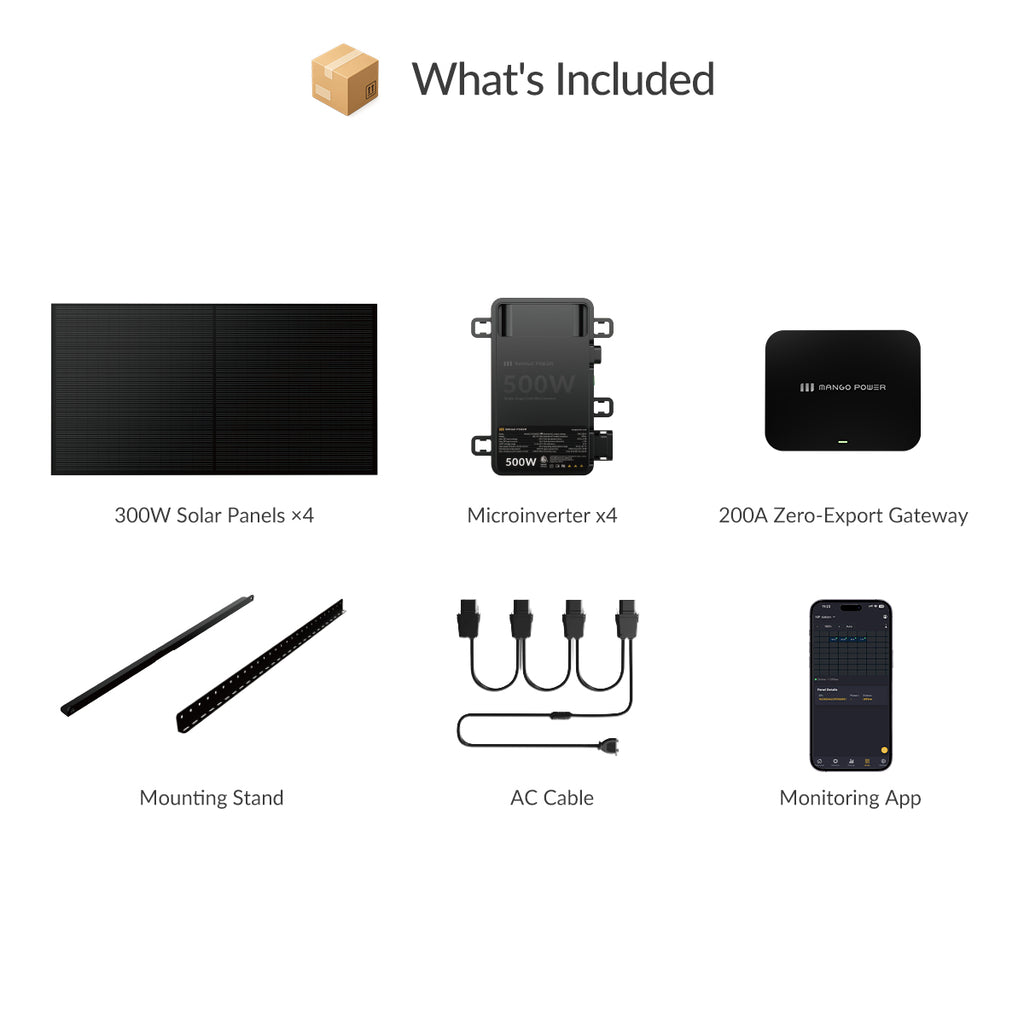

Each Box Includes (4 Boxes)
Specs
-
Rated Output Power
1200W
-
PV Operating Voltage
36V
-
MPPT voltage range (V)
16-60
-
Peak power MPPT voltage range (V)
36~55
-
Number of MPPTs
1
-
Nominal output power (VA)
280
-
CEC efficiency
97%
-
Operating temperature range
-40 to +65 °C
-
Storage temperature range
-40 to +85 °C
12V / 10A
-
Dimensions
1675 × 880 × 30
-
Weight (kg)
19.15
-
Enclosure rating
NEMA Type 6P / IP68
-
Cooling
Natural convection
-
Enclosure protection class
Class Ⅱ double-insulated
-
Altitude
＜ 4000 (＜ 13,123 ft )
＜ 4000 (＜ 13,123 ft )
-
Warranty
25 years
MANGO POWER S PIPV System Datasheet For US
Frequently Asked Questions
Is plug-in solar safe?
Yes. This system is designed from the ground up for safe plug-in operation:
- DC voltage is always below 60V
- No high-voltage DC bus
- No DC arc risk
- Built-in anti-islanding protection
The system automatically disconnects when grid conditions are abnormal.
Does the system comply with the U.S. NEC?
The system architecture aligns with NEC safety principles, including:
- Low-voltage DC operation
- Rapid Shutdown functionality
- Component-level grid connection
- Anti-islanding protection
Local permitting or notification requirements depend on your Authority Having Jurisdiction (AHJ).
How is this different from traditional rooftop solar systems?
Unlike conventional rooftop systems, this kit:
- Operates at low DC voltage
- Does not require roof penetration
- Professional installation is not required in many cases. However, local permitting or inspection requirements may vary depending on your Authority Having Jurisdiction (AHJ)
- Can be moved or expanded
- Is designed for simple, low-risk residential use
It is ideal for first-time solar users and professional installation is not required.
Why does this system generate more energy than traditional solutions?
Higher energy yield comes from:
- Module-level MPPT
- Ultra-low start-up voltage (22V)
- No PID degradation
- Independent operation of each panel
Annual energy production can be 5–30% higher than traditional string-based systems.
How Much Energy Can I Save Per Day?
System:
- 4 × 300W solar panels
- 4 × 280W microinverters
- Total solar power: 1200W (1.2 kW)
Under good weather:
- 5 peak sun hours → ~6 kWh per day
Simple calculation:Daily kWh = 1.2 × Peak Sun Hours
Will the system feed power back to the grid?
Yes, but we provide an optional anti-backflow current meter Mango Power Smart Gateway Lite. For regions where an anti-backflow current function is not required, the anti-backflow meter Mango Power Smart Gateway Lite does not need to be installed.
Can I purchase fewer than four panels?
The standard offering is sold as a four-panel (1200W) kit to ensure optimal performance and compliance with plug-in solar guidelines.
Do I need a professional electrician to install this system?
Utah : Grid connection is permit-exempt; no approval or license application is needed. Users in these two states may install the system on their own.Other states: Please consult your local authority and install in full compliance with local regulations and requirements.

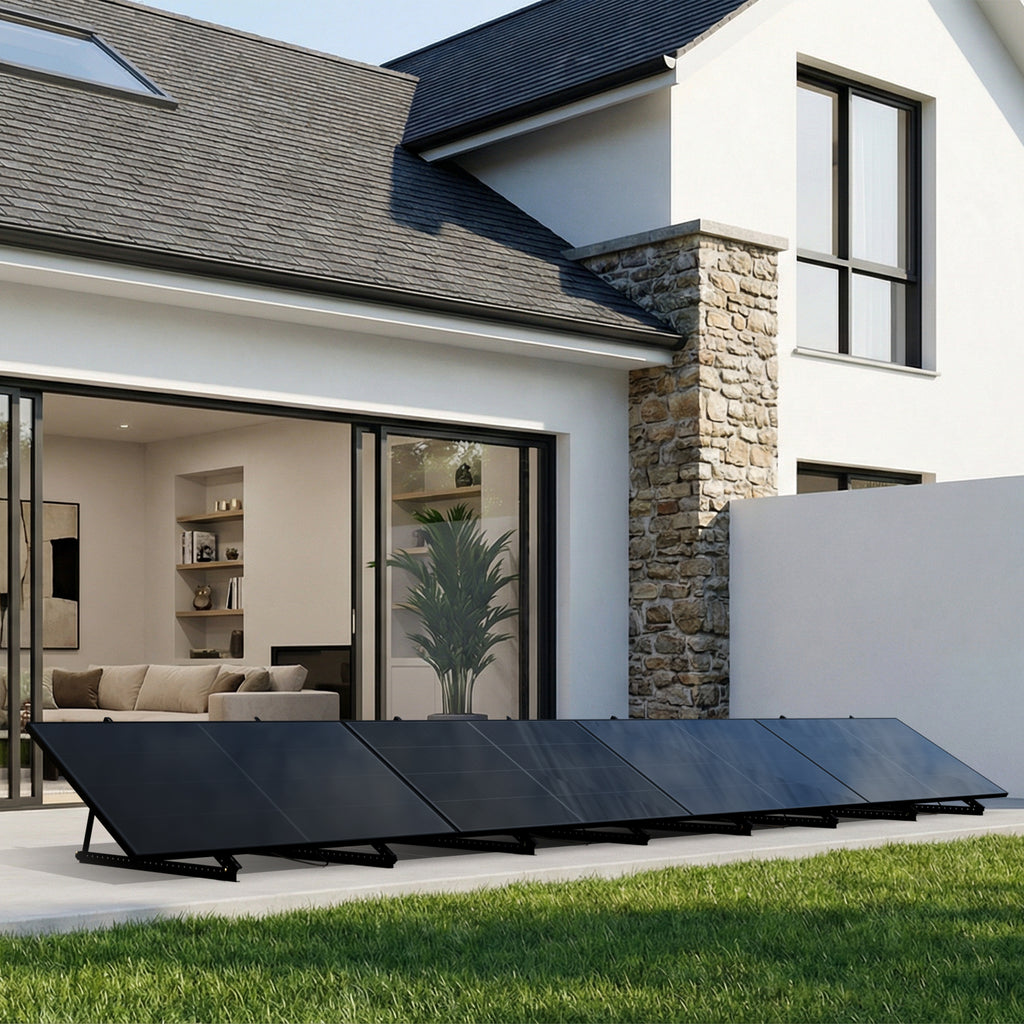

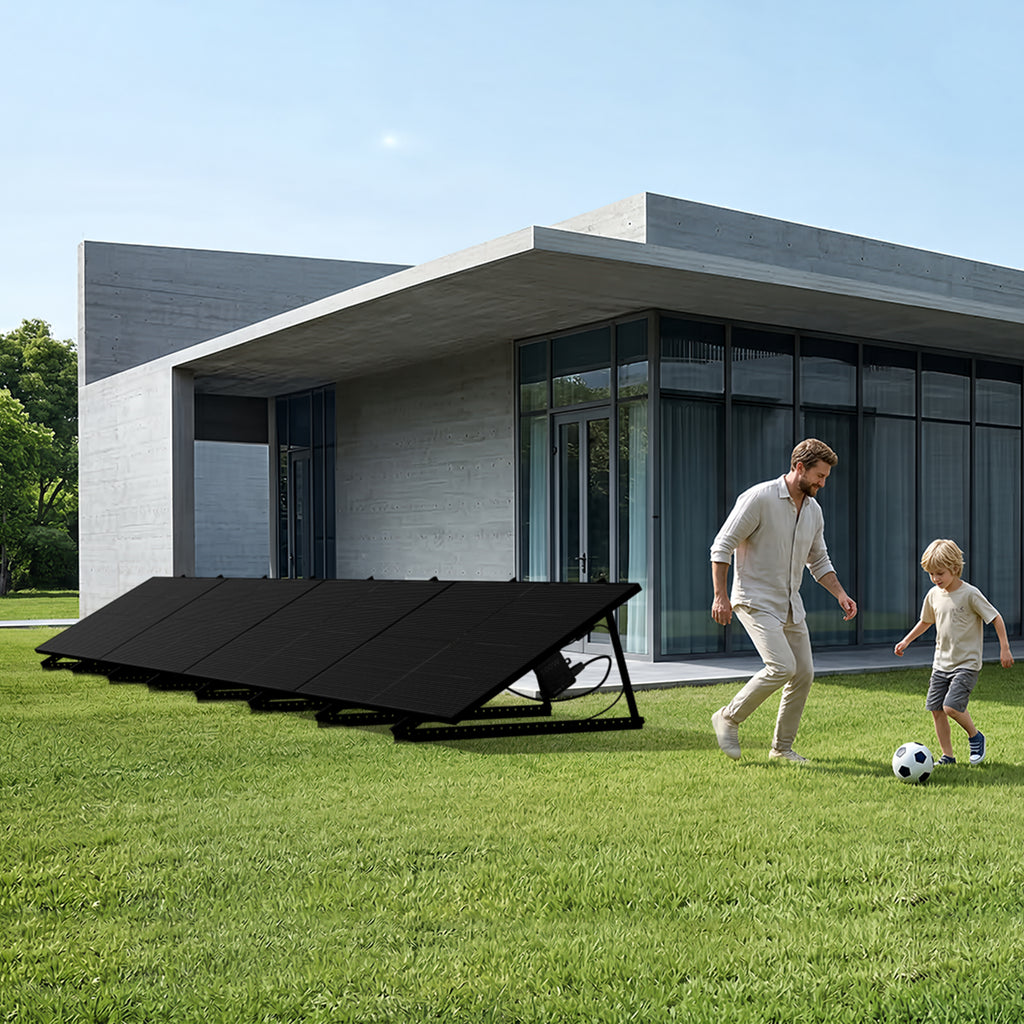

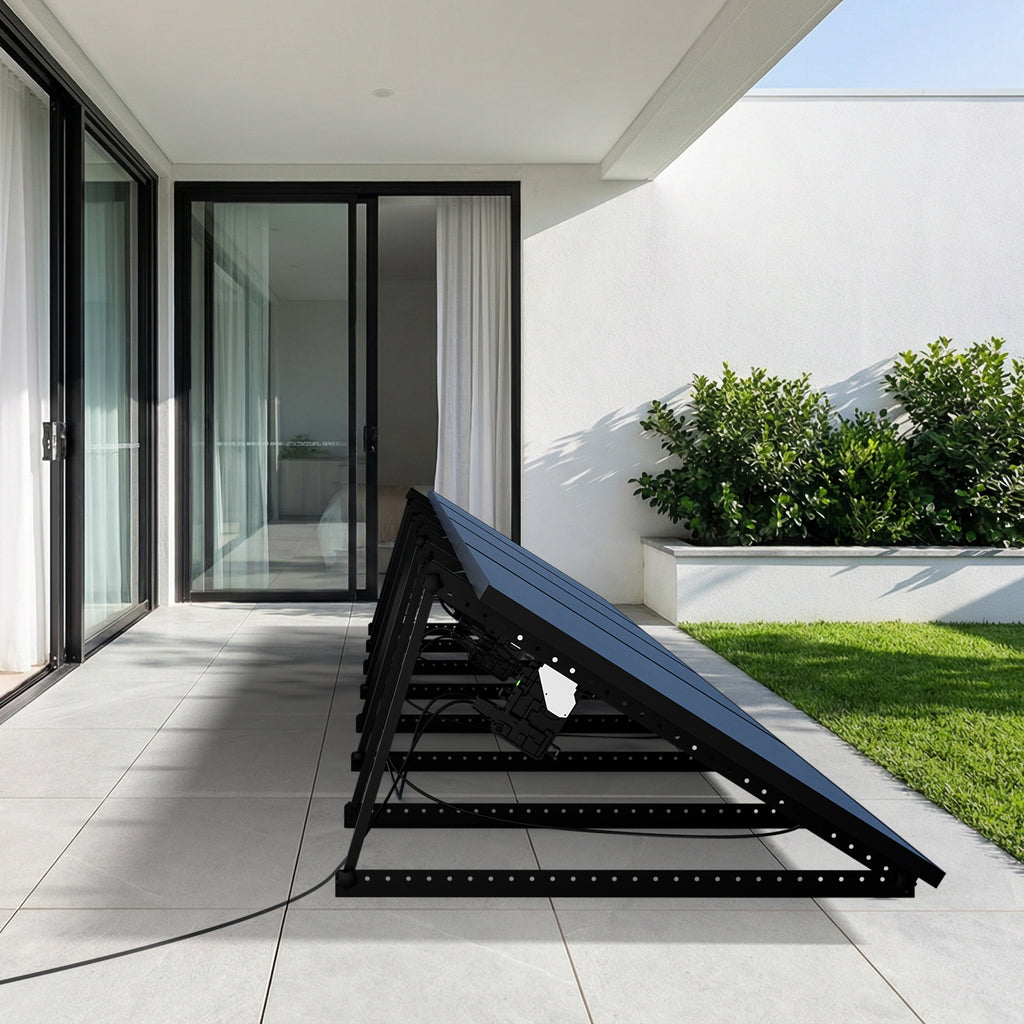

Where can I install the system?
The system can be installed in many locations, including:
- Balconies
- Backyards
- Patios
- Flat roofs
- Carports
- Ground-mounted setups
Any location with sufficient sunlight and an outlet is suitable.
I am a renter. Is this system suitable for me?
Absolutely. This is a plug-and-play balcony solar system with no professional installation needed. It is easy to remove and take with you when moving, and supports self-installation.

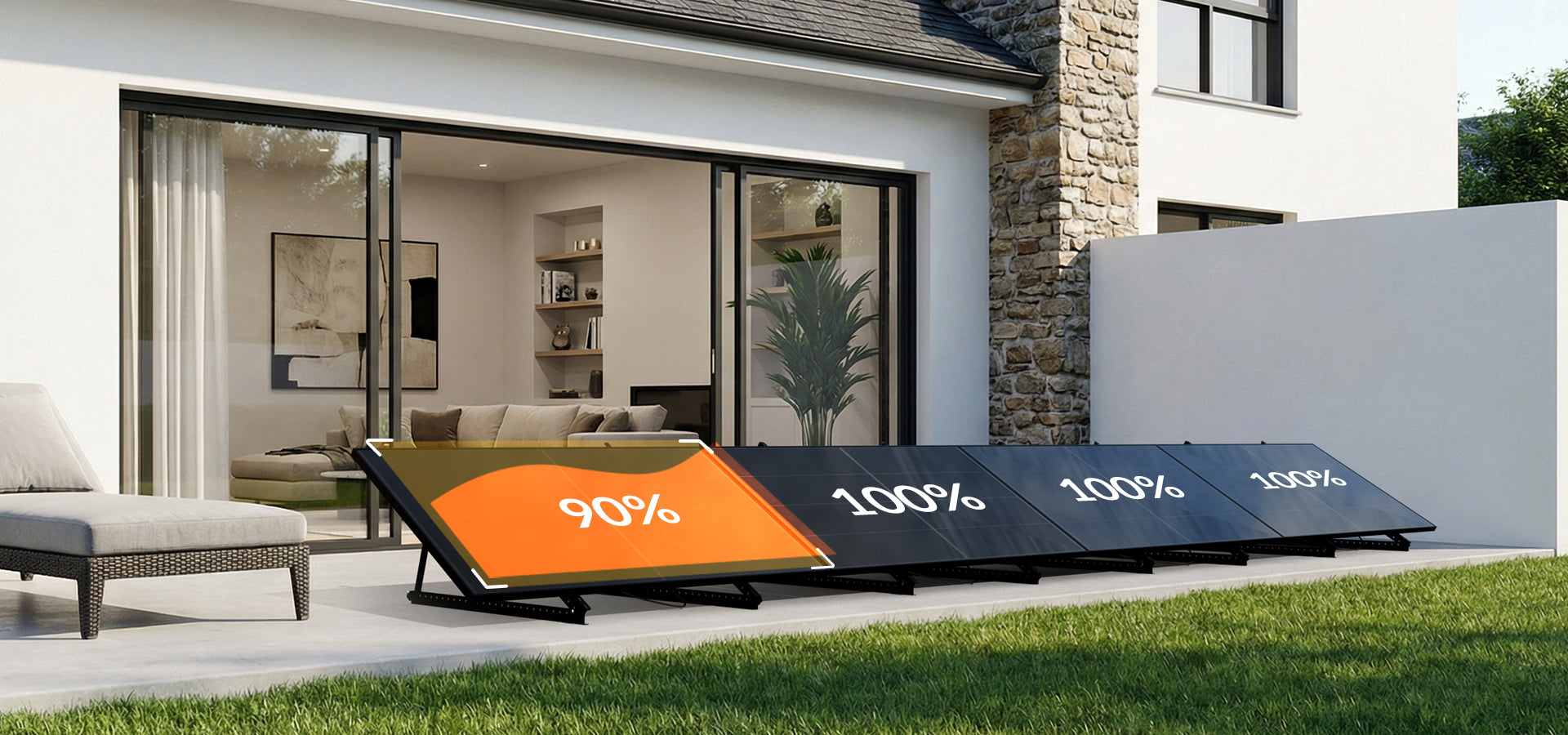

Will shading on one panel affect the whole system?
No. Each panel operates independently, so shading on one module does not reduce the output of the others.

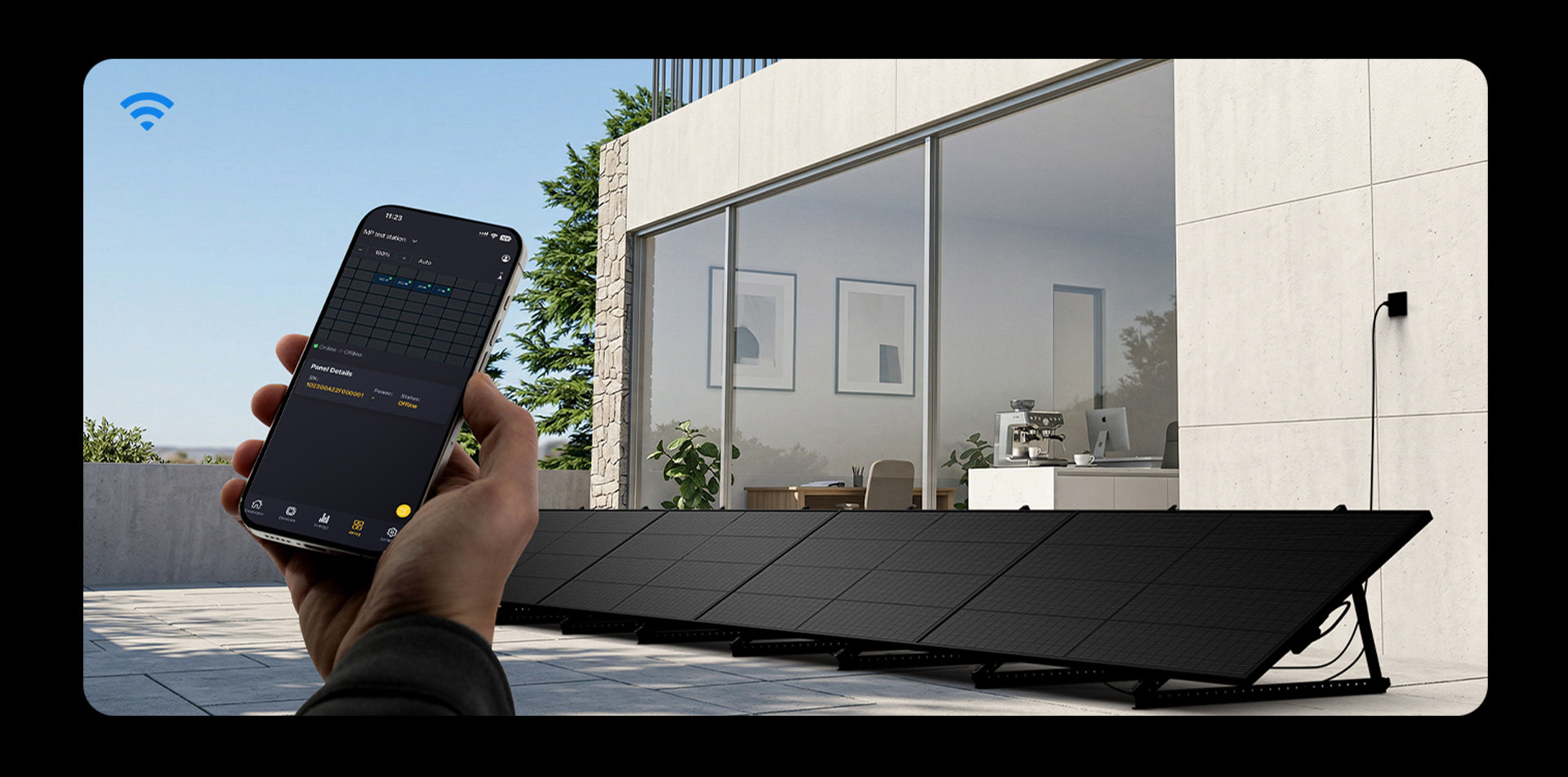

How to monitor the power generated by Plug-in Solar in real time?
You need to first download the Mango Power APP, complete the registration, bind your microinverter to the APP, and connect to WIFI. Then you can see the power generated by Plug-in Solar in real time.
Can the system operate in rain or wet conditions?
Yes. The microinverter is rated IP68 and can operate reliably in harsh outdoor environments, including heavy rain and high humidity.
What happens if one module fails?
Only the affected module needs to be replaced. The rest of the system continues operating normally, minimizing downtime and maintenance cost.
Why does the nameplate specification on the Mango Power S Pro differ from the parameters listed for the PIPV?
The Mango Power S Pro is rated at 240V 500W. However, due to firmware adjustments made for compatibility with the PIPV product in 120V application scenarios, the PIPV version is configured to output 120V at 280W.
If you need to restore it back to the 240V 500W configuration, please contact customer support at support@mangopower.com.
If I switch off the breaker or unplug the system, will the microinverter continue pushing power into the circuit?
No. The Mango Power S/S Pro microinverter includes certified anti-islanding protection. If the outlet loses grid power—whether due to a breaker being turned off, the plug being removed, or a utility outage—the inverter immediately stops exporting power. When grid power is restored, it verifies that voltage and frequency are within specification, synchronizes with the utility, and only then resumes operation. It cannot energize a de-energized circuit on its own.
*1. Financial Estimates: $420 annual savings and $10,000+ lifetime profit are based on 5.5 peak sun hours/day at a utility rate of $0.18/kWh. Actual performance depends on regional solar irradiance and local utility pricing.
*2. DIY Installation: While designed for "Plug-and-Play," users should verify local utility "Permission to Operate" (PTO) requirements for grid-tied devices.
*3. Estimates are based on the EPA (Environmental Protection Agency) Greenhouse Gas Equivalencies Calculator.
*4. In other states that support Zero Export configurations, it may also be used upon successful grid interconnection approval.Adding the Mango Power Smart Gateway Lite enables Zero Export functionality for compliant installation and operation.
