DIY Solar Kits for Home
Start using solar at home without a full rooftop project. Mango Power DIY solar kits combine panels, microinverters and energy monitoring for balconies, patios, backyards and other sunny spaces around home.
What Is a DIY Solar System?
A DIY solar system lets you use electricity from solar panels at home without starting with a traditional, full-scale rooftop installation. Mango Power Plug-In Solar uses panels and microinverters to turn sunlight into power your home can use while the sun is out.
It is a practical path when you have a sunny balcony, patio, backyard or similar space and want to begin with a smaller solar setup. Smart Gateway Lite lets you see your solar production, your home use and grid flow, so you can understand how solar fits into your day instead of treating it as something happening out of sight.
Why Choose Mango Power DIY Solar Kits?
Everything You Need in One DIY Solar Panel Kit
See What Your Solar Is Doing for Your Home
Keep Surplus Power Under Control
Made for Everyday Outdoor Life

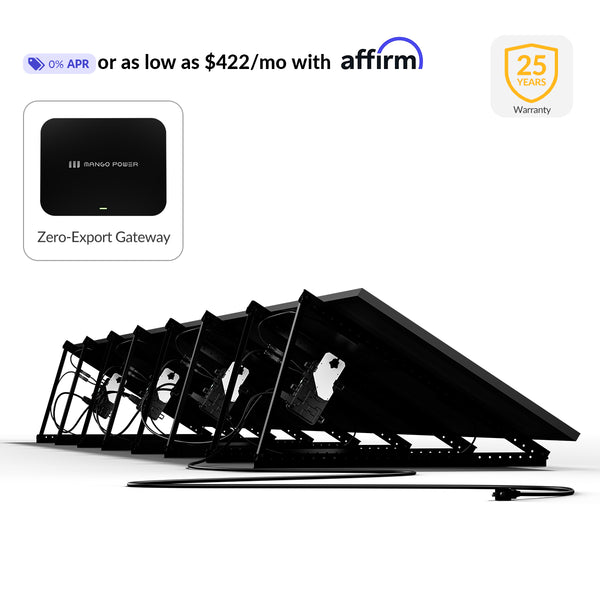

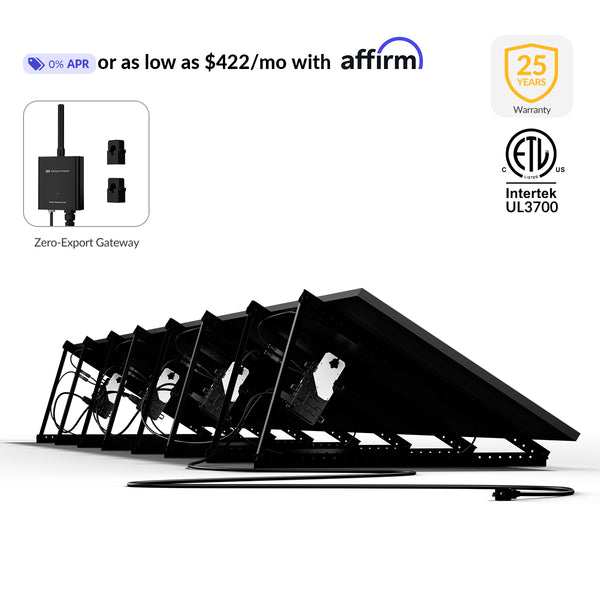

What Comes with a Mango Power DIY Solar Panel Kit?
| Included | Why it matters |
|---|---|
| 4 × 300W solar panels | Capture solar energy wherever you have suitable sunlight. |
| Mango Power S Pro Microinverters | Convert electricity from each panel into AC power for compatible plug-in home use. |
| Solar panel stands | Support panel placement in suitable sunny spaces such as balconies, patios and backyards. |
| Mango Power S Cable PIPV 4-in-1 | Connects the system components as part of the complete plug-in setup. |

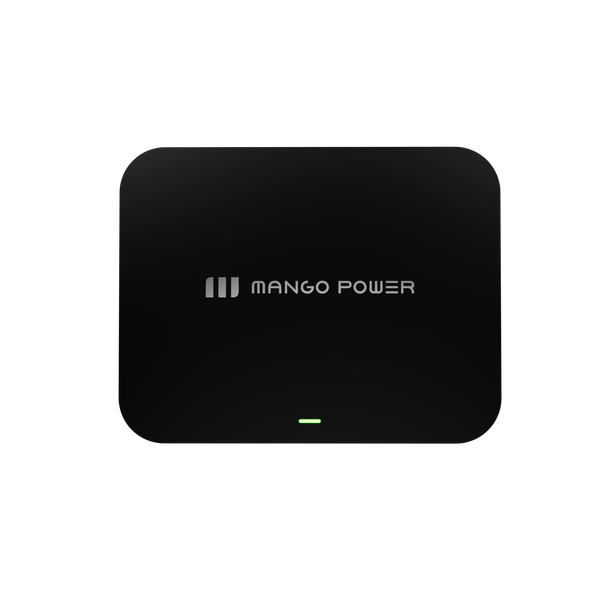

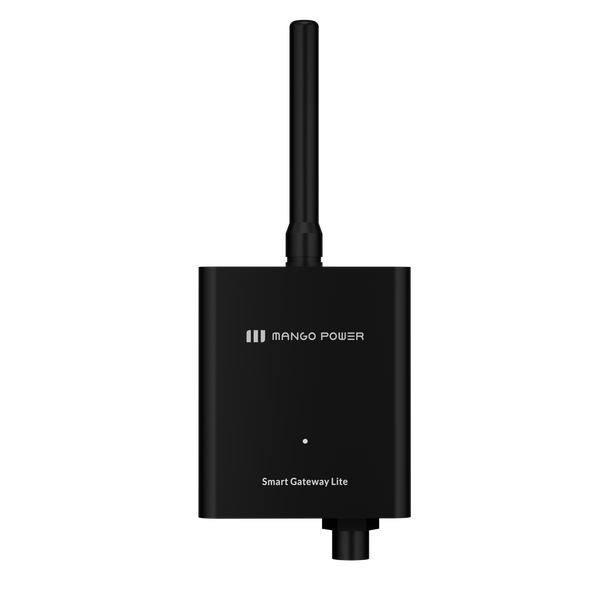

| Mango Power Smart Gateway Lite | Tracks home use, solar production and grid flow, with anti-backflow control for zero-export setups. |
| Mango Power app | Lets you follow system energy data in real time. |
Frequently Asked Questions
Can Mango Power S PIPV be used with Mango Power E?
Mango Power S PIPV does not support off-gridMango Power E configurations. It is compatible with UL-certified home battery systems, including Tesla Powerwall, Enphase, and FranklinWH.
Is plug-in solar safe?
Yes. This system is designed from the ground up for safe plug-in operation:
- DC voltage is always below 60V
- No high-voltage DC bus
- No DC arc risk
- Built-in anti-islanding protection
The system automatically disconnects when grid conditions are abnormal.
Does the system comply with the U.S. NEC?
The system architecture aligns with NEC safety principles, including:
- Low-voltage DC operation
- Rapid Shutdown functionality
- Component-level grid connection
- Anti-islanding protection
Local permitting or notification requirements depend on your Authority Having Jurisdiction (AHJ).
How is this different from traditional rooftop solar systems?
Unlike conventional rooftop systems, this kit:
- Operates at low DC voltage
- Does not require roof penetration
- Professional installation is not required in many cases. However, local permitting or inspection requirements may vary depending on your Authority Having Jurisdiction (AHJ)
- Can be moved or expanded
- Is designed for simple, low-risk residential use
It is ideal for first-time solar users and professional installation is not required.
Why does this system generate more energy than traditional solutions?
Higher energy yield comes from:
- Module-level MPPT
- Ultra-low start-up voltage (22V)
- No PID degradation
- Independent operation of each panel
Annual energy production can be 5–30% higher than traditional string-based systems.
How Much Energy Can I Save Per Day?
System:
- 4 × 300W solar panels
- 4 × 280W microinverters
- Total solar power: 1200W (1.2 kW)
Under good weather:
- 5 peak sun hours → ~6 kWh per day
Simple calculation:Daily kWh = 1.2 × Peak Sun Hours
Will the system feed power back to the grid?
Yes, but we provide an optional anti-backflow current meter Mango Power Smart Gateway Lite. For regions where an anti-backflow current function is not required, the anti-backflow meter Mango Power Smart Gateway Lite does not need to be installed.
Can I purchase fewer than four panels?
The standard offering is sold as a four-panel (1200W) kit to ensure optimal performance and compliance with plug-in solar guidelines.
Do I need a professional electrician to install this system?
Utah : Grid connection is permit-exempt; no approval or license application is needed. Users in these two states may install the system on their own.Other states: Please consult your local authority and install in full compliance with local regulations and requirements.
Where can I install the system?
The system can be installed in many locations, including:
- Balconies
- Backyards
- Patios
- Flat roofs
- Carports
- Ground-mounted setups
Any location with sufficient sunlight and an outlet is suitable.
I am a renter. Is this system suitable for me?
Absolutely. This is a plug-and-play balcony solar system with no professional installation needed. It is easy to remove and take with you when moving, and supports self-installation.
Will shading on one panel affect the whole system?
No. Each panel operates independently, so shading on one module does not reduce the output of the others.
How to monitor the power generated by Plug-in Solar in real time?
You need to first download the Mango Power APP, complete the registration, bind your microinverter to the APP, and connect to WIFI. Then you can see the power generated by Plug-in Solar in real time.
Can the system operate in rain or wet conditions?
Yes. The microinverter is rated IP68 and can operate reliably in harsh outdoor environments, including heavy rain and high humidity.
What happens if one module fails?
Only the affected module needs to be replaced. The rest of the system continues operating normally, minimizing downtime and maintenance cost.
Why does the nameplate specification on the Mango Power S Pro differ from the parameters listed for the PIPV?
The Mango Power S Pro is rated at 240V 500W. However, due to firmware adjustments made for compatibility with the PIPV product in 120V application scenarios, the PIPV version is configured to output 120V at 280W.
If you need to restore it back to the 240V 500W configuration, please contact customer support at support@mangopower.com.
If I switch off the breaker or unplug the system, will the microinverter continue pushing power into the circuit?
No. The Mango Power S/S Pro microinverter includes certified anti-islanding protection. If the outlet loses grid power—whether due to a breaker being turned off, the plug being removed, or a utility outage—the inverter immediately stops exporting power. When grid power is restored, it verifies that voltage and frequency are within specification, synchronizes with the utility, and only then resumes operation. It cannot energize a de-energized circuit on its own.
