The World's 1st Integrated Home

& Portable Battery

Product will be launched in August 2021.

Join the community now to get:

Early bird opportunity (start at $3999)

Product tips & tricks

Latest news about production

All in One Design

The Worlds’ First Integrated Home

and Portable Battery

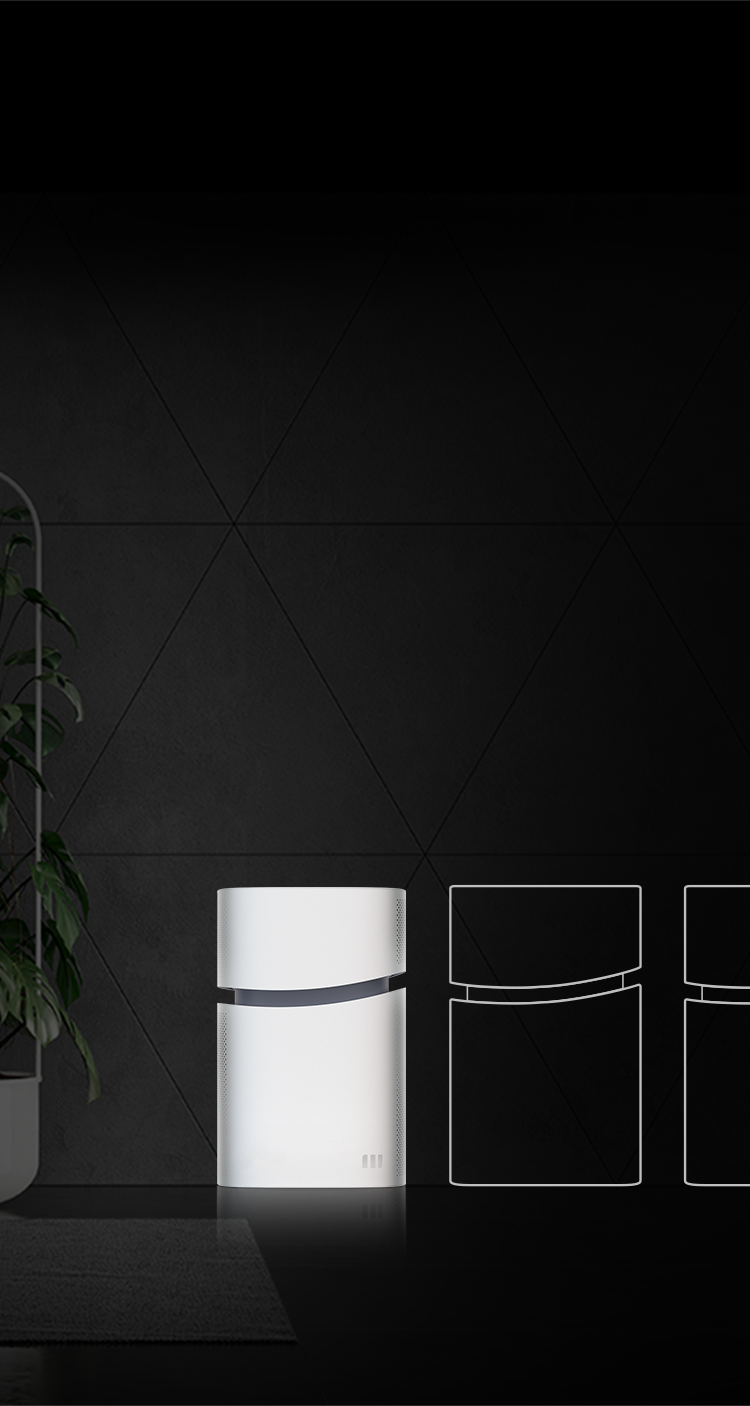

Detachable

Module Design

6.9kWh / 4kW

Home Micro-Grid

2.3kWh / 2kW

Portable Power Station

Unlike the average home battery or portable power stations that can only light up outdoor life, the Mango Power Union delivers an all-in-one energy solution housed in one device. The dedicated mUnion Connection combines the Power Home home battery and the Power Move portable power station into a single sleek, stunning package that swirls with ambient light and redefines aesthetics for an independent energy device. Powerfully beautiful home energy starts here.

Learn More

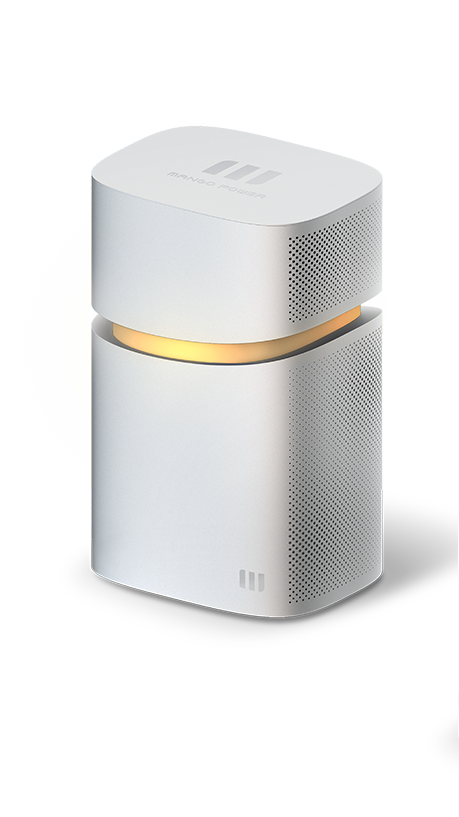

The Most Lightweight Design

Ever Devised

The Mango Power Union utilizes minimalist design philosophy and language inside and outside to achieve a compact, suitcase-sized design that’s 35%1 lighter than similar home batteries while the naturalistic, organic aesthetic make it a stylish accent that fits the style of any modern home.

Ambient light indicates the Mango Power Union’s status (charging, error, connection)

Minimalist display clearly shows
battery percentage

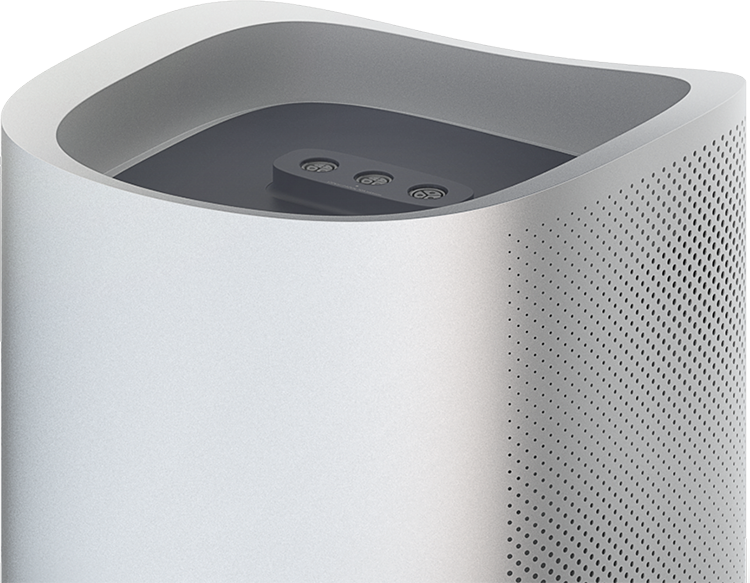

The mUnion Connection seamlessly combines the Power Home and Power Move while allowing for easy detachability

Child and pet-friendly with no
exposed wiresor sharp corners

1. 35% refers to capacity and density when compared to 5.1kWh/3kW power station.

Power Union

A Home Micro-Grid

6.9kWh / 4kW
A

Up to 69kWh / 40kW
Extension

Built-in Backup
Gateway

96% Transfer
Efficiency

The Mango Power Union reduces your reliance on the grid. Its 6.9kWh battery and 4kW output are more than sufficient for 3 days energy consumption for a normal family in the event of a power outage.

Learn More

2. Data from the Mango Power Lab. Emergency home use: 1.88kWh/day (4 lights, fan, router, laptop, and smartphone). Daily home use: 29kWh/day (based on US users' average daily electric consumption in 2019).

Seamless Home Backup Power Supply

The Mango Power Union detects power outages when the grid goes down and automatically repowers your home within 10 milliseconds3 , keeping all your important appliances in the backup circuits working 24*7, whatever happens.

Built-in Backup Gateway

The Mango Power Union comes with a built-in backup gateway for Wi-Fi and Bluetooth connection, no extra accessories needed.

Advanced Semiconductor Delivers

96% Efficiency

The Mango Power Union utilize 3rd generation semiconductors in key components to deliver higher energy density and 96% energy transfers efficiency, significantly better than the industry average.

Mango Power Union

Battery Capacity

6.9kWh

Transfer Efficiency (η)

96%

DoD (Depth of Discharge)

95%

Final Energy Can be Used

6.2kWh

Brand X

Battery Capacity

5.1kWh

Transfer Efficiency (η)

88%

DoD (Depth of Discharge)

90%

Final Energy Can be Used

4.0kWh

mPower Boost Mode

mPower Boost Mode lets you switch output to 240V so you can run power-hungry devices when you need to.
3. 10 milliseconds refers to response time of the PV inverter. Actual switch time may vary.
4. Data from the Mango Power Lab.

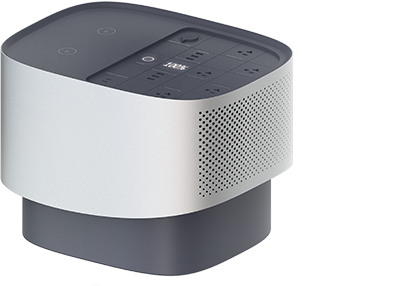

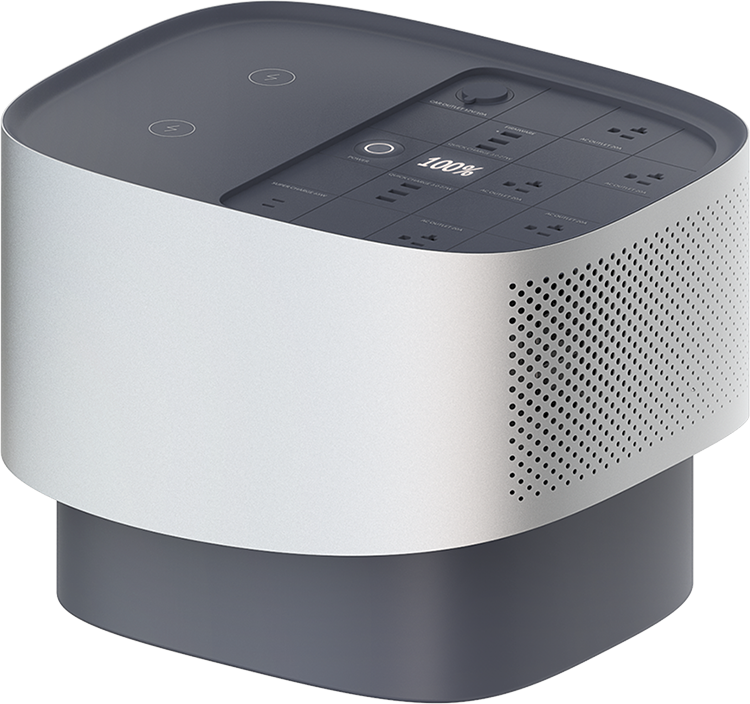

Power Move 2.3kWh / 2kW

Detachable Portable Power Station

2.3kWh / 2kW
Capacity

1500W MPPT Solar
& 1100W Wall Charging

Sleek
Stylish Design

Powerful
Output

The Power Move equips you with reliable portable power for camping, tailgating, off-grid events, and workshops with a 2.3kWh battery and supports 2kW AC output. It can handle surges up to 4kW from power tools, refrigerators or air conditioners, so it will power anything anywhere. 15 output ports including AC, USB-C, USB-A, wireless charging and car power output for your different needs.

Learn More

Fast Charging Power Move

The Power Move supports 1500W MPPT (12V-250V), so it can charge by either the portable solar panel or a roof solar system, while 1100W wall charging will give it a full charge in just 3 hours5

5. Data from the Mango Power Lab.

Solar and Grid Fast Charging Any Way

3kW MPPT

Solar Charging

3.3kW AC

Grid Charging

The World’s First Built-in

Dual PV inverter

With the World’s first built-in dual PV inverter, the Mango Power Union support 3kW MPPT solar charging (12V-250V) and 3.3kW AC wall charging. You can charge the Mango Power Union with roof solar system or portable panels, whatever the situation calls for. The smart MCU (Micro Control Unit), DSP (Digital Signal Processor) and BMS (Battery Management System) algorithms keep charging fast and limit wear on the battery.

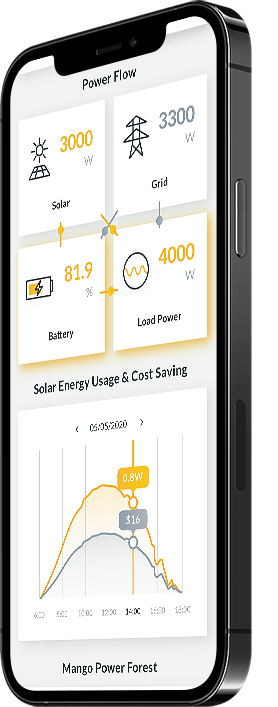

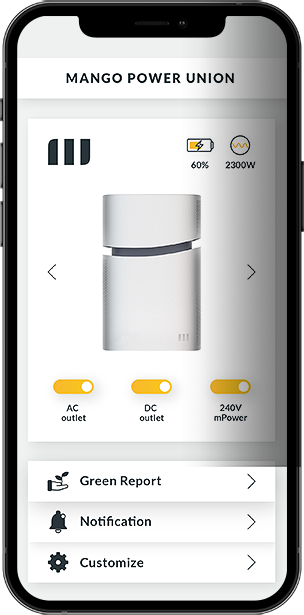

Manage Your Energy from Anywhere

with Smart App Control

Bluetooth and Wi-Fi
Connectivity

Smart Energy and Carbon
Footprint Report

Control from
Anywhere

Smart
Notifications

See your home’s energy production and consumption in real-time and take control with the Mango Power App. Customize your energy usage, optimize for independence, protect against outages, or increase your savings. Now with the Mango Power Union, you can use your energy smarter.

Learn More

Switching Modes and Customize Your

Settings for Energy Savings

Backup Power
Mode

Time-Based
Control Mode

Economical
Mode

Backup Protection

for Essential Circuits in Your Home

Never Fear Power Outage Again

The World’s First
Built-in Dual PV Inverter

Power to Spare Even Running
10 Devices

4kW/40A Seamless
Home Backup Power

With the built-in backup gateway and 4kW/40A home backup outlet, your lights, phones and other essential devices will always be powered up even when the grid goes down. The Mango Power Union can even be set up to include 10 units working in unison, bringing an incredible 69kWh/40kW power for complete energy independence.

Learn More

4kW/40A Home Backup Outlet

The Mango Power Union has a built-in backup gateway for Wi-Fi and Bluetooth connections, putting everything within your control. It supports 4kW/40A home backup outlets so you can seamlessly backup your home’s essential circuits.

Stack Up to 10 Mango Power Unions
for Up to 69kWh/40kW

With the advanced technology built into the Mango Power Union, you can stack up to 10 devices in parallel6 for battery and output increases commensurate with the total number of units. That’s big flexibility and even bigger energy for a customized family power hub.

6. This feature requires an extra accessory, the mPanel. The mPanel is
not included with the Mango Power Union.

Best Battery in the Energy Storage

System Market

High Class

EV mCell

mTurboPack

Technology

Lightweight

Design

Works

Well in Winter

Unlike normal 18650 cells, the Mango Power Union uses mCell, a unique high-class Polymer NCM EV Battery. The energy density reaches 194 Wh/kg, 38% higher than other products and the battery has a working temperature of -4°F– 131°F (-20°C -55°C). The smart BMS (Battery Management System) and mTurboPack Technology balance the voltage of each battery pack. This gives the Mango Power Union more than 6000+ battery charging cycles, the equivalent of 10 years of use.

Safety Always Comes First

Aerosol Fire

Protection System

9 Dedicated

Chipsets

Meet US and International

safety and EMI standards

The Mango Power Union is specially designed for safety. The built-in aerosol protector eliminates the danger of flames. 9 chipsets control and monitor the Mango Power Union with timely precision. Smart Self-Checking ensures in real-time that current, voltage, total load etc., are all running within appropriate ranges.

Live Green, Live Better

Every timethe Mango Power Union gets a full charge via solar power and uses its stored energy is a 0.79 kg reduction in carbon emissions, the equivalent of 48trees’ carbon capture per day.

With the Mango Power App, you can easily check your power use with the Smart Energy and Carbon Footprint Report, and for every 48kWh solar power that is tracked flowing through your Mango Power device, we will plant a tree in a select national park. When the planting season is over, we’ll send you a report letting you know how your efforts created bigger, greener forests and better, greener world.

The activity is valid for one year after the product purchase

Mango Power Union All – in – One

Home Backup
Battery 6.9kWh

Built-in Backup
Gateway

Portable Power
Station 2.3kWh

Built-in Dual PV Inverter(Supports
both Roof and Portable Solar Panels)

Mango Power specs

Mango Power Union

Mango Power Move

General

Net Weight & Size

149.9 Ibs

17.6 * 13.6 * 26.7 inch

Warranty

24 Months

Certifications

Meets US and International

safety and EMI standards

Input & Output

AC Charging

3300W

Solar Charging

3000W MPPT (12V-250V)

AC Output

5 x 20A / Max 4000W

DC Output

5 x USB-A QC 3.0 27W

2 x USB-C PD 65W

2 x Wireless Charging 20W

1 x Car Output 12V/10A

Battery and Inverter

Capacity

6.9 kWh

(High Class EV Polymer NCM Battery Cell)

AC Output Power

4000W (Surge 6600W)

24/7 Seamless Home Backup & UPS

Yes

Scalability

Up to 10 devices 69kWh/40kW Extension

Smart Control

Connection

Bluetooth & Wi-Fi

App Control

Remote Control / Smart

Measurement / Smart Energy and

Carbon Footprint Report/ Smart

Notifications / OTA Upgrade & USB

Firmware Update

Customized Mode

Backup Power Mode / Time-Based

Control Mode / Economical Mode

General

Net Weight & Size

41.9 Ibs

17.6 * 13.6 * 11.4 inch

Warranty

24 Months

Certifications

Meets US and International

safety and EMI standards

Input & Output

AC Charging

1100W

Solar Charging

1500W MPPT (12V-250V)

AC Output

5 x 20A / Max 2000W

DC Output

5 x USB-A QC 3.0 27W

2 x USB-C PD 65W

2 x Wireless Charging 20W

1 x Car Output 12V/10A

Battery and Inverter

Capacity

2.3 kWh

(High Class EV Polymer NCM Battery Cell)

AC Output Power

2000W (Surge 3300W)

24/7 Seamless Home Backup & UPS

Scalability

Smart Control

AC Charging

Bluetooth & Wi-Fi

App Control

Remote Control / Smart

Measurement / Smart Energy and

Carbon Footprint Report/ Smart

Notifications / OTA Upgrade & USB

Firmware Update

Customized Mode

Learn More

The World's 1st Integrated Home

& Portable Battery

Product will be launched in August 2021.

Join the community now to get:

Early bird opportunity (start at $3999)

Product tips & tricks

Latest news about production

MANGO POWER UNION

The World's 1st Integrated Home & Portable Battery

Product will be launched in August 2021.
Join the community now to get:

● Early bird opportunity (start at $3999)
● Product tips & tricks
● Latest news about production

All in One Design
The Worlds’ First Integrated Home and Portable Battery

Detachable
Module Design
6.9kWh / 4kW
Home Micro-Grid
2.3kWh / 2kW
Portable Power Station

Unlike the average home battery or portable power stations that can only light up outdoor life, the Mango Power Union delivers an all-in-one energy solution housed in one device. The dedicated mUnion Connection combines the Power Home home battery and the Power Move portable power station into a single sleek, stunning package that swirls with ambient light and redefines aesthetics for an independent energy device. Powerfully beautiful home energy starts here.

The activity is valid for one year after the product purchase

Power Union A Home Micro-Grid

6.9kWh / 4kW

Built-in Backup
Gateway
Up to 69kWh / 40kW
Extension
96% Transfer
Efficiency

The Mango Power Union reduces your reliance on the grid. Its 6.9kWh battery and 4kW output are more than sufficient for 3 days2 energy consumption for a normal family in the event of a power outage.

2. Data from the Mango Power Lab. Emergency home use: 1.88kWh/day (4 lights, fan, router, laptop, and smartphone).
Daily home use: 29kWh/day (based on US users' average daily electric consumption in 2019).

Power Move 2.3kWh / 2kW
Detachable Portable Power Station

2.3kWh / 2kW
Capacity
Sleek
Stylish Design
1500W MPPT Solar
& 1100W Wall Charging
Powerful
Output

The Power Move equips you with reliable portable power for camping, tailgating, off-grid events, and workshops with a 2.3kWh battery and supports 2kW AC output. It can handle surges up to 4kW from power tools, refrigerators or air conditioners, so it will power anything anywhere. 15 output ports including AC, USB-C, USB-A, wireless charging and car power output for your different needs.

Solar and Grid Fast Charging Any Way

3kW MPPT
Solar Charging
3.3kW AC
Grid Charging
The World’s First Built-in
Dual PV inverter

With the World’s first built-in dual PV inverter, the Mango Power Union support 3kW MPPT solar charging (12V-250V) and 3.3kW AC wall charging. You can charge the Mango Power Union with roof solar system or portable panels, whatever the situation calls for. The smart MCU (Micro Control Unit), DSP (Digital Signal Processor) and BMS (Battery Management System) algorithms keep charging fast and limit wear on the battery.

Manage Your Energy from Anywhere
with Smart App Control

Bluetooth and Wi-Fi
Connectivity
Control from
Anywhere
Smart Energy and Carbon
Footprint Report
Smart
Notifications

See your home’s energy production and consumption in real-time and take control with the Mango Power App. Customize your energy usage, optimize for independence, protect against outages, or increase your savings. Now with the Mango Power Union, you can use your energy smarter.

Backup Protection for Essential Circuits in Your Home
Never Fear Power Outage Again

The World’s First
Built-in Dual PV Inverter
4kW/40A Seamless
Home Backup Power
Power to Spare Even Running
10 Devices

With the built-in backup gateway and 4kW/40A home backup outlet, your lights, phones and other essential devices will always be powered up even when the grid goes down. The Mango Power Union can even be set up to include 10 units working in unison, bringing an incredible 69kWh/40kW power for complete energy independence.

Best Battery in the Energy Storage System Market

High Class
EV mCell
mTurboPack
Technology
Lightweight
Design
Works
Well in Winter

Unlike normal 18650 cells, the Mango Power Union uses mCell, a unique high-class Polymer NCM EV Battery. The energy density reaches 194 Wh/kg, 38% higher than other products and the battery has a working temperature of -4°F– 131°F (-20°C -55°C). The smart BMS (Battery Management System) and mTurboPack Technology balance the voltage of each battery pack. This gives the Mango Power Union more than 6000+ battery charging cycles, the equivalent of 10 years of use.

Safety Always Comes First

Aerosol Fire
Protection System
9 Dedicated
Chipsets
Meet US and International
safety and EMI standards

The Mango Power Union is specially designed for safety. The built-in aerosol protector eliminates the danger of flames. 9 chipsets control and monitor the Mango Power Union with timely precision. Smart Self-Checking ensures in real-time that current, voltage, total load etc., are all running within appropriate ranges.

Live Green, Live Better

Every timethe Mango Power Union gets a full charge via solar
power and uses its stored energy is a 0.79 kg. reduction in carbon
emissions, the equivalent of 48 trees’ carbon capture per day.

The Mango Power Forest Plan

With the Mango Power App, you can easily check your power use with the Smart Energy and Carbon Footprint Report, and for every 48kWh solar power that is tracked flowing through your Mango Power device, we will plant a tree in a select national park. When the planting season is over, we’ll send you a report letting you know how your efforts created bigger, greener forests and better, greener world.

Mango Power Union All – in – One

Home Backup
Battery 6.9kWh
Portable Power
Station 2.3kWh
Built-in Backup
Gateway
Built-in Dual PV Inverter
(Supports both Roof and Portable Solar Panels)

Mango Power specs

Mango Power Union
Mango Power Move

General

Net Weight & Size
149.9 Ibs
17.6 * 13.6 * 26.7 inch
Warranty
span>24 Months
Certifications
Meets US and International
safety and EMI standards

Input & Output

AC Charging
3300W
Solar Charging
3000W MPPT (12V-250V)
Output
5 x 20A / 4000W
5 x USB-A QC 3.0 27W
2 x USB-C PD 65W
2 x Wireless Charging 20W
1 x Car Output 12V/20A

Battery and Inverter

Capacity
6.9 kWh
AC Output Power
4000W (Surge 6600W)
24/7 Seamless Home Backup & UPS
Yes
Scalability
Up to 10 devices 69kWh/40kW Extension

Smart Control

Connection
Bluetooth & Wi-Fi
App Control
Remote Control / Smart Measurement / Smart Energy and Carbon Footprint Report/ Smart Notifications / OTA Upgrade & USB Firmware Update
Customized Mode
Backup Power Mode / Time-Based
Control Mode / Economical Mode

Mango Power specs

Mango Power Union
Mango Power Move

General

Net Weight & Size
41.9 Ibs
17.6 * 13.6 * 11.4 inch
Warranty
24 Months
Certifications
Meets US and International
safety and EMI standards

Input & Output

AC Charging
1100W
Solar Charging
1500W MPPT (12V-250V)
Output
5 x 20A / 2000W
5 x USB-A QC 3.0 27W
2 x USB-C PD 65W
2 x Wireless Charging 20W
1 x Car Output 12V/20A

Battery and Inverter

Capacity
2.3 kWh
AC Output Power
2000W (Surge 3300W)
24/7 Seamless Home Backup & UPS
N/A
Scalability
N/A

Smart Control

Connection
Bluetooth & Wi-Fi
App Control
Remote Control / Smart Measurement / Smart Energy and Carbon Footprint Report/ Smart Notifications / OTA Upgrade & USB Firmware Update
Customized Mode
N/A

MANGO POWER UNION

The World's 1st Integrated Home & Portable Battery

Product will be launched in August 2021.
Join the community now to get:

● Early bird opportunity (start at $3999)
● Product tips & tricks
● Latest news about production
